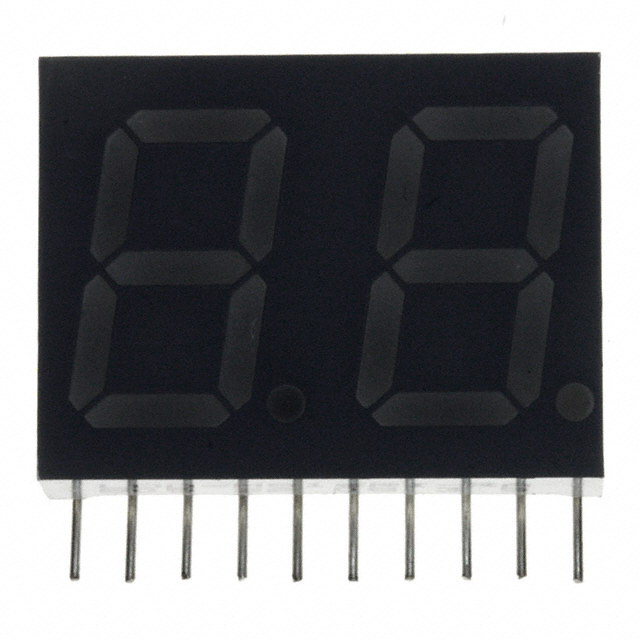

LDD-M516RI-RA

Active

Lumex Opto/Components Inc.

DISP 7SEG 0.56" DBL RED 10SIP RA

Deep-Dive with AI

Search across all available documentation for this part.

LDD-M516RI-RA

Active

Lumex Opto/Components Inc.

DISP 7SEG 0.56" DBL RED 10SIP RA

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LDD-M516RI-RA

Color	Red
Common Pin	Common Anode
Digit/Alpha Size	0.56 in
Digit/Alpha Size	14.22 mm
Display Type	7-Segment
Number of Characters	2
Package / Case	10-SIP Right Angle
Size / Dimension [x]	25 mm
Size / Dimension [x]	0.984 in
Size / Dimension [y]	0.315 in
Size / Dimension [y]	8 mm
Size / Dimension [z]	19 mm
Size / Dimension [z]	0.748 "

LDD-M516 Series

DISP 7SEG 0.56" DBL RED 10SIP RA

Part	Digit/Alpha Size	Digit/Alpha Size	Color	Number of Characters	Display Type	Common Pin	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Package / Case
Lumex Opto/Components Inc. LDD-M516RI-RA	0.56 in	14.22 mm	Red	2	7-Segment	Common Anode	25 mm	19 mm	0.315 in	8 mm	0.984 in	0.748 "	10-SIP Right Angle

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 2.06

Description

General part information

LDD-M516 Series

Display Modules - LED Character and Numeric Red 7-Segment 2 Character Common Anode 0.984" H x 0.315" W x 0.748" D (25.00mm x 8.00mm x 19.00mm) 10-SIP Right Angle

Documents

Technical documentation and resources

No documents available
