DC3222604S

Active

SAB North America

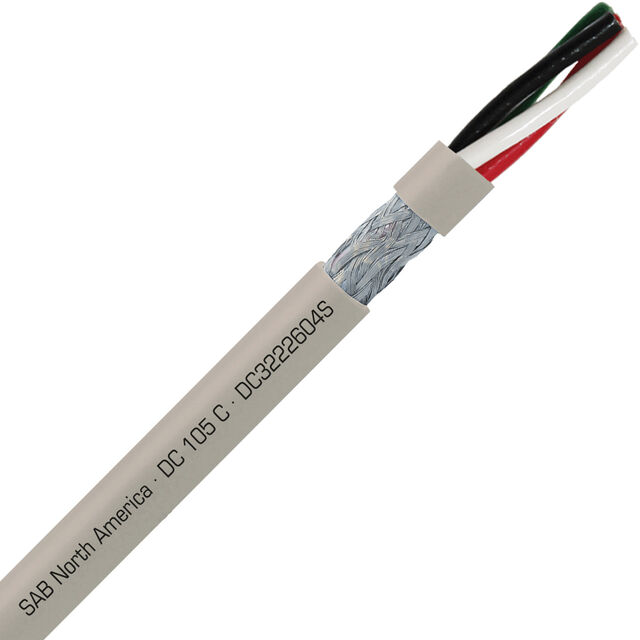

CABLE 4COND 26AWG GRY SHLD 1=1FT

Search across all available documentation for this part.

Active

SAB North America

CABLE 4COND 26AWG GRY SHLD 1=1FT

Technical Specifications

Parameters and characteristics for this part

Specification	DC3222604S

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand	7 Strands, 34 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	4.98 mm
Jacket (Insulation) Diameter [diameter]	0.196 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	Enter Number of Feet in Order Quantity
Number of Conductors	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Voltage	300 V
Wire Gauge	26 AWG

CABLE 4COND 26AWG GRY SHLD 1=1FT

Part	Shield Material	Features	Voltage	Shield Type	Conductor Strand	Jacket Color	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Wire Gauge	Conductor Insulation	Number of Conductors	Cable Type	Conductor Material	Jacket (Insulation) Material
SAB North America DC3222604S	Aluminum, Copper, Tinned	Drain Wire	300 V	Braid, Foil	7 Strands, 34 AWG	Gray	-25 °C	105 ░C	4.98 mm	0.196 in	Enter Number of Feet in Order Quantity	26 AWG	Poly-Vinyl Chloride (PVC)	4	Multi-Conductor	Copper, Tinned	Poly-Vinyl Chloride (PVC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

4 Conductor Multi-Conductor Cable Gray 26 AWG Foil, Braid Enter Number of Feet in Order Quantity
