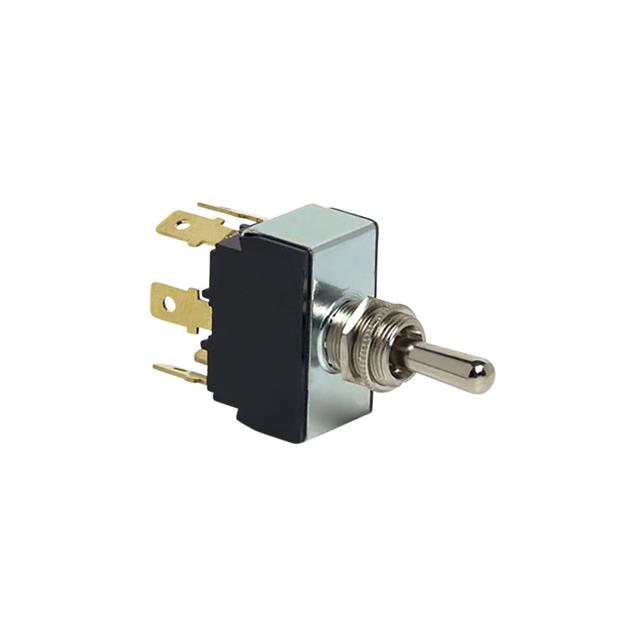

55065-03

Active

Cole Hersee

SWITCH TOGGLE DPDT 25A 12V

Search across all available documentation for this part.

Active

Cole Hersee

SWITCH TOGGLE DPDT 25A 12V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	55065-03	55065 Series

Actuator Length [x]	17.46 mm	17.46 - 38.1 mm
Actuator Material	Brass, Nickel Plated	Brass, Nickel Plated
Actuator Type	Standard Round	Standard Round
Bushing Thread	15/32-32	15/32-32
Circuit	DPDT	DPDT
Current Rating (Amps)	25 A	15 - 25 A
Illumination	Non-Illuminated	Non-Illuminated
Panel Cutout Dimensions [diameter]	11.9 mm	11.9 mm
Switch Function	Mom-Off-Mom	Mom-Off-Mom
Termination Style	Quick Connect - 0.250" (6.3mm)	Quick Connect - 0.250" (6.3mm)
Voltage Rating - DC	12 V	12 - 24 V

SWITCH TOGGLE DPDT 25A 12V

Part	Bushing Thread	Actuator Material	Illumination	Switch Function	Panel Cutout Dimensions [diameter]	Actuator Type	Voltage Rating - DC	Termination Style	Actuator Length [x]	Circuit	Current Rating (Amps)
Cole Hersee 55065-03	15/32-32	Brass, Nickel Plated	Non-Illuminated	Mom-Off-Mom	11.9 mm	Standard Round	12 V	Quick Connect - 0.250" (6.3mm)	17.46 mm	DPDT	25 A
Cole Hersee 55065-02	15/32-32	Brass, Nickel Plated	Non-Illuminated	Mom-Off-Mom	11.9 mm	Standard Round	24 V	Quick Connect - 0.250" (6.3mm)	38.1 mm	DPDT	15 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch DPDT Panel Mount
