Description
General part information

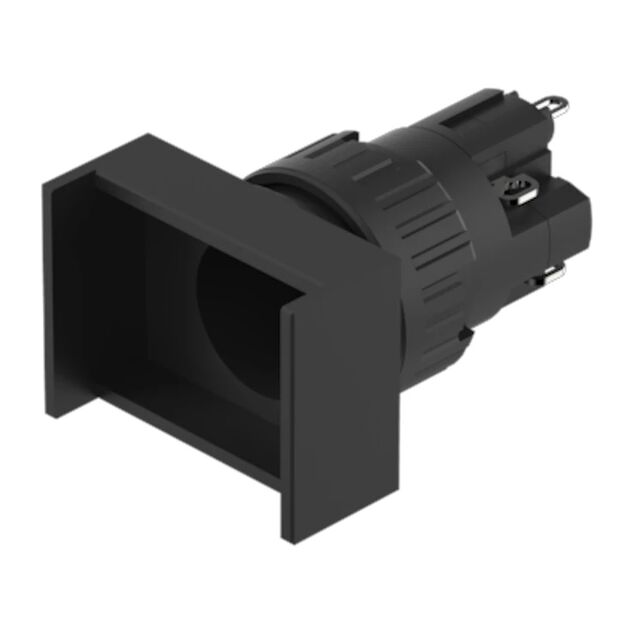

51-714.0292
Pushbutton Switch DPST-NO/NC Standard, Illuminated Panel Mount, Front
Technical Specifications
Parameters and characteristics for this part
| Specification | 51-714.0292 |
|---|---|
| Actuator Type | Rectangular, Button (Not Included) |
| Circuit | DPST-NO/NC |
| Current Rating | 5 A |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP65 |
| Mounting Type | Front, Panel Mount |
| Panel Cutout Diameter | 16.2 mm |
| Panel Cutout Shape | Circular |
| Switch Function | On-Off, Off-On |
| Termination Style | Solder Lug, PC Pin |
| Type | Standard, Illuminated |
| Voltage Rating - AC | 250 V |
