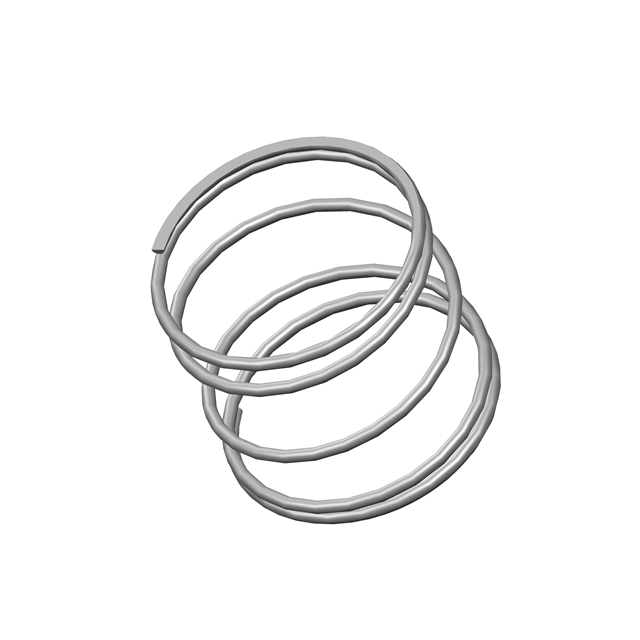

1948CS
ActiveCentury Spring Corp
COMP O=1.687,L= 1.50,W= .078
1948CS
ActiveCentury Spring Corp
COMP O=1.687,L= 1.50,W= .078
Description
General part information
1948CS
COMP O=1.687,L= 1.50,W= .078
Technical Specifications
Parameters and characteristics for this part
| Specification | 1948CS |
|---|---|
| Diameter - Inside | 1.531 in |
| Diameter - Outside | 1.687 in |
| End Style | Ground, Closed |
| Finish | Zinc |
| Free Length | 1.5 in |
| Material | Spring Steel |
| Rate (lbs/in) | 4.3 lbs/in |
| Type | Compression |
| Wire Diameter | 0.078 in |
