LCCA30218-FT2
ActivePasternack
4.3-10 MALE TO 4.3-10 MALE USING
LCCA30218-FT2
ActivePasternack
4.3-10 MALE TO 4.3-10 MALE USING
Description
General part information
LCCA30218-FT2

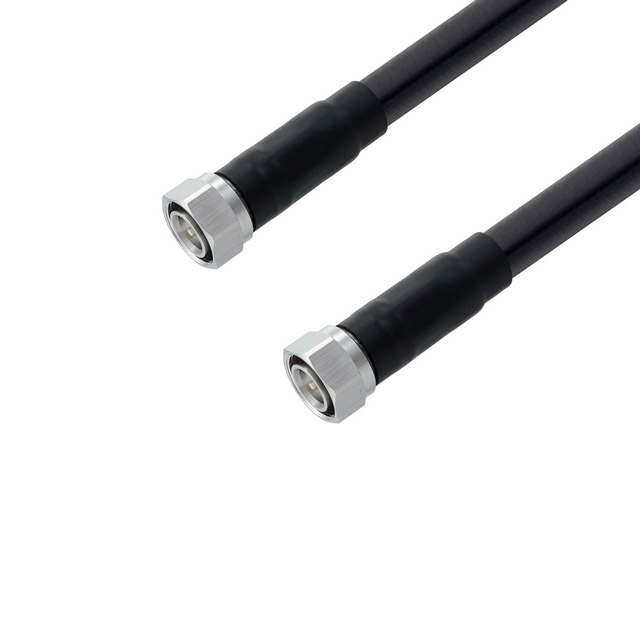

Cable Assembly Coaxial 4.3/10 to 4.3/10 LMR 600 DB 24.00" (609.60mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | LCCA30218-FT2 |
|---|---|
| 1st Connector | 4.3/10 Plug |
| 1st Connector - Type | Plug |
| 1st Connector Dimension (1) | 4.3 mm |
| 1st Connector Dimension (2) | 10 mm |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Size (Dimension 1) | 4.3, 4.3 mm |
| 1st Connector Size (Dimension 2) | 10, 10 mm |
| 1st Connector Type | Plug |
| 1st Contact Gender | Male |
| 2nd Connector | 4.3/10 Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | LMR, DB |
| Cable Type Size | 600 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 5.8 GHz |
| Length | 24 in |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | 4.3/10 to 4.3/10 |
