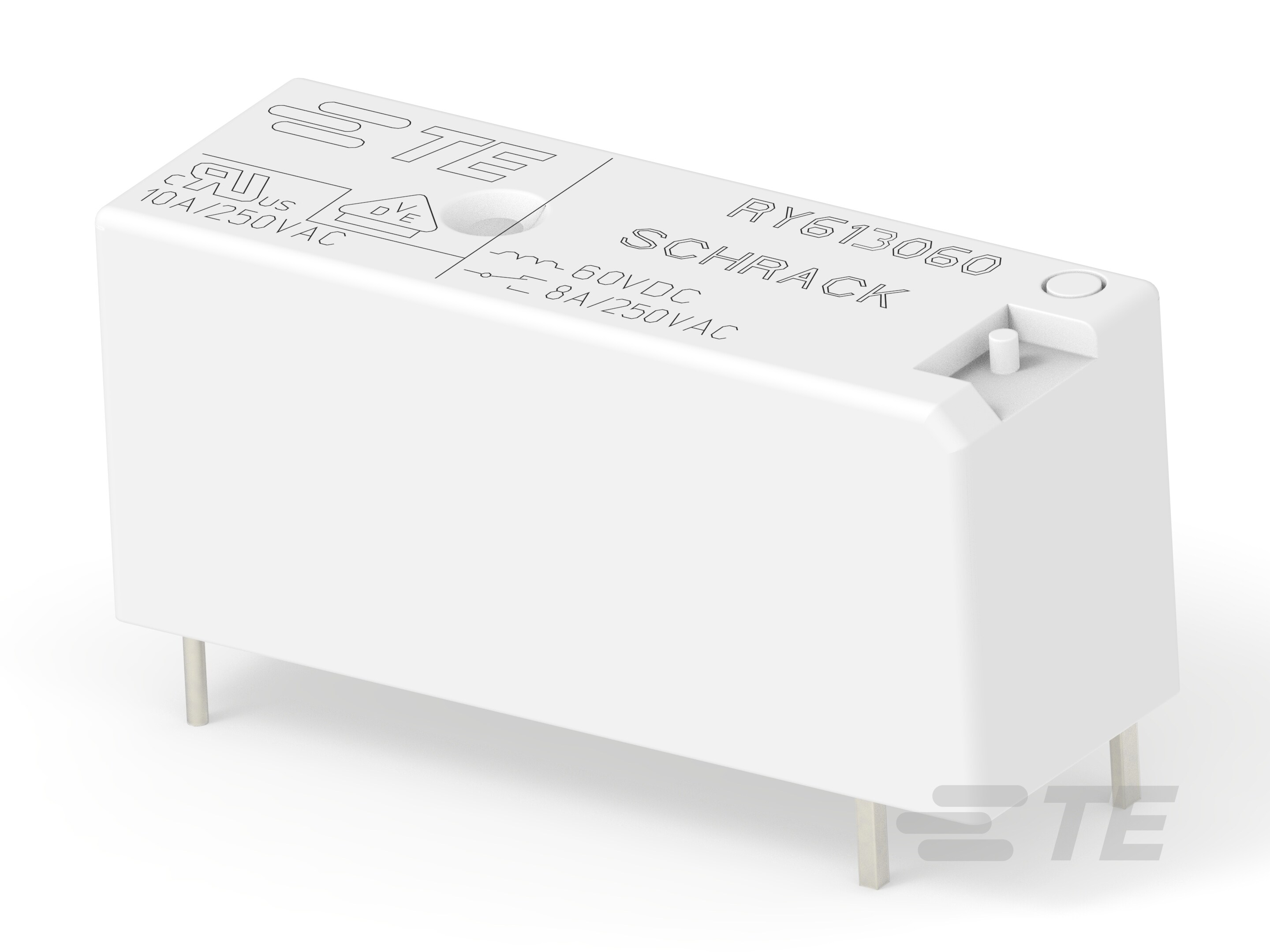

Specification	3-1393225-5

Approval Agency	VDE, cURus
Coil Current	4.3 mA
Coil Resistance	14 kOhms
Coil Type	Non Latching
Coil Voltage	60 VDC
Contact Form	C, 1, SPDT, Form
Contact Material	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	8 A
Load - Max Switching (Apparent Power)	3200 VA
Mounting Type	Through Hole
Must Operate Voltage	42 VDC
Must Release Voltage	6 VDC
Operate Time	9 ms
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-40 °C
Relay Type	General Purpose
Release Time	5 ms
Seal Rating	Fully, Sealed
Switching Voltage AC (Max)	400 VAC
Termination Style	PC Pin

SCHRACK Miniature Power PCB RYII Series

...

Part	Contact Material	Operating Temperature (Min)	Operating Temperature (Max)	Load - Max Switching (Apparent Power)	Coil Voltage	Contact Rating (Current)	Seal Rating	Must Release Voltage	Approval Agency	Coil Type	Switching Voltage AC (Max)	Must Operate Voltage	Operate Time	Release Time	Termination Style	Relay Type	Contact Form	Mounting Type	Coil Current	Coil Resistance	Coil Insulation	Form B Count
TE Connectivity AMP Connectors 4-1393224-4	Silver Nickel (AgNi)	-40 °C	70 °C	3200 VA	8 VDC	8 A	Flux Protection Sealed	0.8 VDC	cURus VDE	Non Latching	400 VAC	5.6 VDC	9 ms	5 ms	PC Pin	General Purpose	1 C Form SPDT	Through Hole
TE Connectivity AMP Connectors 2-1956170-4
TE Connectivity AMP Connectors RY212048
TE Connectivity AMP Connectors 2-1393225-5	Silver Nickel (AgNi)	-40 °C	70 °C	3200 VA	9 VDC	8 A		0.9 VDC	cURus VDE	Non Latching	400 VAC	6.3 VDC	9 ms	5 ms	PC Pin	General Purpose	1 C Form SPDT	Through Hole	28.1 mA
TE Connectivity AMP Connectors RY612048	Silver Nickel (AgNi)	-40 °C	70 °C	3200 VA	48 V	8 A	Fully Sealed	4.8 VAC	cURus VDE	Non Latching	400 VAC	33.6 VAC	9 ms	5 ms	PC Pin	General Purpose	1 C Form SPDT	Through Hole	5.1 mA	9.4 kOhms
TE Connectivity AMP Connectors 2-1956170-7	Silver Nickel (AgNi)	-40 °C	70 °C	3200 VA	24 VDC	8 A			cURus VDE	Non Latching	400 VAC		9 ms	5 ms	PC Pin	General Purpose	1 C Form SPDT	Through Hole	10.2 mA		Class F
TE Connectivity AMP Connectors 5-1393224-4	Silver Nickel (AgNi)	-40 °C	70 °C	3200 VA	9 VDC	8 A	Flux Protection Sealed	0.9 VDC	cURus VDE	Non Latching	400 VAC	6.3 VDC	9 ms	5 ms	PC Pin	General Purpose	1 C Form SPDT	Through Hole	28.1 mA
TE Connectivity AMP Connectors 2-1393224-8	Silver Nickel (AgNi)	-40 °C	70 °C	3200 VA	24 VDC	8 A	Fully Sealed	2.4 V	cURus VDE	Non Latching	400 VAC	16.8 VDC	9 ms	5 ms	PC Pin	General Purpose	SPST-NC	Through Hole	10.2 mA	2.35 kOhms		1
TE Connectivity AMP Connectors 3-1956170-1	Silver Tin Oxide (AgSnO)	-40 °C	70 °C	3200 VA	12 VAC	8 A	Flux Protection Sealed	1.2 V	cURus VDE	Non Latching	400 VAC	8.4 VAC	9 ms	5 ms	PC Pin	General Purpose	1 C Form SPDT	Through Hole	19.1 mA	627 Ohms
TE Connectivity AMP Connectors RY212006
