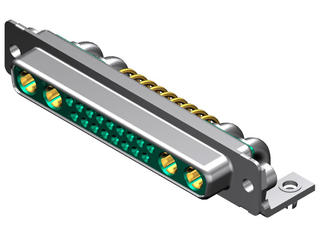

1731071852 - FCT Mixed Layout D-Sub Connector, Female, Right-Angle, PCB Through Hole, Gold Plating, Tin-plated Shell, 14.50mm Riveted Metal Bracket and #4-40 Clinch Nut, 21 Circuits Loaded (4 High Power, 17 Signal), Green Insulator

1731071852

Active
Molex

FCT MIXED LAYOUT D-SUB CONNECTOR, FEMALE, RIGHT-ANGLE, PCB THROUGH HOLE, GOLD PLATING, TIN-PLATED SHELL, 14.50MM RIVETED METAL BRACKET AND #4-40 CLINCH NUT, 21 CIRCUITS LOADED (4 HIGH POWER, 17 SIGNAL), GREEN INSULATOR

Find alt
1731071852 - FCT Mixed Layout D-Sub Connector, Female, Right-Angle, PCB Through Hole, Gold Plating, Tin-plated Shell, 14.50mm Riveted Metal Bracket and #4-40 Clinch Nut, 21 Circuits Loaded (4 High Power, 17 Signal), Green Insulator

1731071852

Active
Molex

FCT MIXED LAYOUT D-SUB CONNECTOR, FEMALE, RIGHT-ANGLE, PCB THROUGH HOLE, GOLD PLATING, TIN-PLATED SHELL, 14.50MM RIVETED METAL BRACKET AND #4-40 CLINCH NUT, 21 CIRCUITS LOADED (4 HIGH POWER, 17 SIGNAL), GREEN INSULATOR

Find alt

Description

General part information

173107 Series

D-Sub Mixed Contact Connectors FCT ML DSUB RA PC PLG 24W7 W/CLINCH

Technical Specifications

Parameters and characteristics for this part

Specification1731071852
Backset Spacing0.37 in
Connector Layout21WA4, C, DC
Connector StyleCombo, D-Sub
Connector TypeReceptacle, Female Sockets
Contact FinishGold
Contact TypeCoax or Power, Signal
Current Rating5 A
FinishTin Plated
Flange FeatureShell (Unthreaded), Housing
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole, Right Angle
Number of Positions (Special)4
Number of Positions (Standard)17
Number of Positions (Total)21
Number of Rows2
Position TypesPower, Coax
Primary MaterialMetal
Shell MaterialSteel
Shell Size4
TerminationSolder
