ET0301520000G

Active

AMPHENOL ANYTEK

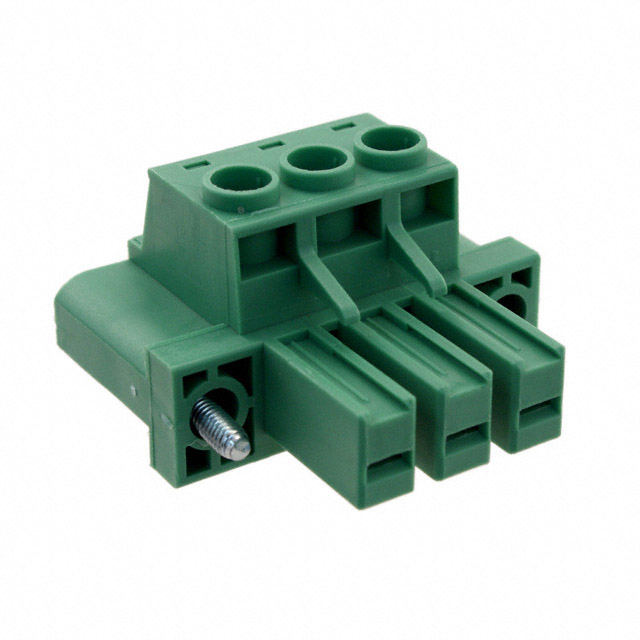

TERM BLOCK PLUG 3POS 7.62MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ET0301520000G

Active

AMPHENOL ANYTEK

TERM BLOCK PLUG 3POS 7.62MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.87
		10	$ 2.05
		25	$ 1.79
		50	$ 1.63
		100	$ 1.49
		250	$ 1.34
		500	$ 1.26
		1200	$ 1.18
		6000	$ 1.08

Description

General part information

ET Series

3 Position Terminal Block Plug, Blade Sockets 0.300" (7.62mm) 180° Free Hanging (In-Line)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ET0301520000G	ET Series

	-	-
Color	Green	Green, Black
Contact Material	Copper Alloy	Copper Alloy, Copper
Contact Mating Finish	Tin	Tin
Current - UL	32 A	32 - 41 A
Features	Retention Latches (Non-Wire Side), Mating Flange	Retention Latches (Non-Wire Side), Mating Flange
Housing Material	Thermoplastic Resin	Thermoplastic Resin, Thermoplastic
Insulation Height [z]	0.902 "	0.902 "
Insulation Height [z]	22.9 mm	22.9 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Levels	1	1
Number of Positions	-	2 - 15
Number of Positions	-	16
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	0.3 in	0.3 in
Pitch [x]	7.62 mm	7.62 mm
Positions Per Level	3	2 - 16
Screw Size	M3.5	M3.5
Termination Style	Screw - Rising Cage Clamp	Screw - Rising Cage Clamp, Screw
Torque - Screw	0.79 Nm	0.79 Nm
Torque - Screw	7 Lb-In	7 Lb-In
Type	Blade Sockets, Plug	Plug, Female Sockets, Blade Sockets, Plug
Voltage - UL	300 V	300 V
Wire Gauge or Range - AWG [Max]	24 AWG	24 AWG
Wire Gauge or Range - AWG [Min]	8 AWG	8 AWG
Wire Gauge or Range - mm² [Max]	10 mm²	10 mm²
Wire Gauge or Range - mm² [Min]	2.5 mm²	2.5 mm²
Wire Strip Length [Max]	7 mm	7 - 11 mm
Wire Strip Length [Min]	6 mm	6 - 10 mm

ET Series

TERM BLOCK PLUG 13POS STR 7.62MM

Part	Wire Strip Length [Max]	Wire Strip Length [Min]	Contact Mating Finish	Positions Per Level	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Current - UL	Housing Material	Color	Termination Style	Screw Size	Contact Material	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Number of Positions	Mounting Type	Torque - Screw	Torque - Screw	Pitch [x]	Pitch [x]	Type	Number of Levels	Voltage - UL	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height [z]	Insulation Height [z]	Number of Positions	Features
AMPHENOL ANYTEK ET1301500000G	11 mm	10 mm	Tin	13	10 mm²	2.5 mm²	32 A	Thermoplastic Resin	Green	Screw - Rising Cage Clamp	M3.5	Copper Alloy	24 AWG	8 AWG	13	Free Hanging (In-Line)	0.79 Nm	7 Lb-In	0.3 in	7.62 mm	Plug, Female Sockets	1	300 V	UL94 V-0	-40 °C	115 °C	0.902 "	22.9 mm
AMPHENOL ANYTEK ET0902500000G	11 mm	10 mm	Tin	9			41 A	Thermoplastic	Green	Screw	M3.5	Copper	24 AWG	8 AWG	9	Free Hanging (In-Line)	0.79 Nm	7 Lb-In	0.3 in	7.62 mm	Plug, Female Sockets	1		UL94 V-0	-40 °C	115 °C	0.902 "	22.9 mm
AMPHENOL ANYTEK ET1601500000G	11 mm	10 mm	Tin	16	10 mm²	2.5 mm²	32 A	Thermoplastic Resin	Green	Screw - Rising Cage Clamp	M3.5	Copper Alloy	24 AWG	8 AWG		Free Hanging (In-Line)	0.79 Nm	7 Lb-In	0.3 in	7.62 mm	Plug, Female Sockets	1	300 V	UL94 V-0	-40 °C	115 °C	0.902 "	22.9 mm	16
AMPHENOL ANYTEK ET1101520000G	7 mm	6 mm	Tin	11	10 mm²	2.5 mm²	32 A	Thermoplastic Resin	Green	Screw - Rising Cage Clamp	M3.5	Copper Alloy	24 AWG	8 AWG	11	Free Hanging (In-Line)	0.79 Nm	7 Lb-In	0.3 in	7.62 mm	Blade Sockets, Plug	1	300 V	UL94 V-0	-40 °C	115 °C	0.902 "	22.9 mm		Mating Flange, Retention Latches (Non-Wire Side)
AMPHENOL ANYTEK ET1202520000G	11 mm	10 mm	Tin	12			41 A	Thermoplastic	Green	Screw	M3.5	Copper	24 AWG	8 AWG	12	Free Hanging (In-Line)	0.79 Nm	7 Lb-In	0.3 in	7.62 mm	Plug, Female Sockets	1		UL94 V-0	-40 °C	115 °C	0.902 "	22.9 mm		Mating Flange, Retention Latches (Non-Wire Side)
AMPHENOL ANYTEK ET0602520000G	11 mm	10 mm	Tin	6			41 A	Thermoplastic	Green	Screw	M3.5	Copper	24 AWG	8 AWG	6	Free Hanging (In-Line)	0.79 Nm	7 Lb-In	0.3 in	7.62 mm	Plug, Female Sockets	1		UL94 V-0	-40 °C	115 °C	0.902 "	22.9 mm		Mating Flange, Retention Latches (Non-Wire Side)
AMPHENOL ANYTEK ET1401500000G	11 mm	10 mm	Tin	14	10 mm²	2.5 mm²	32 A	Thermoplastic Resin	Green	Screw - Rising Cage Clamp	M3.5	Copper Alloy	24 AWG	8 AWG	14	Free Hanging (In-Line)	0.79 Nm	7 Lb-In	0.3 in	7.62 mm	Plug, Female Sockets	1	300 V	UL94 V-0	-40 °C	115 °C	0.902 "	22.9 mm
AMPHENOL ANYTEK ET03005E0000G
AMPHENOL ANYTEK ET03015D0000G
AMPHENOL ANYTEK ET0701520000G	7 mm	6 mm	Tin	7	10 mm²	2.5 mm²	32 A	Thermoplastic Resin	Green	Screw - Rising Cage Clamp	M3.5	Copper Alloy	24 AWG	8 AWG	7	Free Hanging (In-Line)	0.79 Nm	7 Lb-In	0.3 in	7.62 mm	Blade Sockets, Plug	1	300 V	UL94 V-0	-40 °C	115 °C	0.902 "	22.9 mm		Mating Flange, Retention Latches (Non-Wire Side)
