L722AS

Active

Switchcraft Inc.

CONN PWR JACK 2X5.5MM SOLDER

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN PWR JACK 2X5.5MM SOLDER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	L722AS	L722A Series

Actual Diameter	0.079 "	0.079 "
Actual Diameter	2 mm	2 mm
Body Color	Silver, Black	Silver, Black, White
Body Material	Copper Alloy	Copper Alloy
Connector Type	Jack	Jack
Contact Material	Copper Alloy	Copper Alloy
Contact Material - Plating	-	Tin
Contact Material - Plating [custom]	Silver	Silver
Current Rating (Amps)	5 A	5 A
Features	Thread Lock, Mounting Hardware	Thread Lock, Mounting Hardware, Strain Relief
Gender	Male	Male
Housing Material	Thermoplastic	Thermoplastic
Includes	1 Washer, 1 O-Ring, 1 Nut, 1 Connector	1 Washer, 1 O-Ring, 1 Nut, 1 Connector, Connector, Washer, Nut
Industry Recognized Mating Diameter [diameter]	0.079 in, 0.217 "	0.079 - 0.217 in
Industry Recognized Mating Diameter [diameter]	2 mm, 5.5 mm	2 - 5.5 mm
Ingress Protection	IP68	IP68
Insulation Color	-	Black
Internal Switch(s)	Single Switch, Normally Closed	Single Switch, Normally Closed
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	-	Free Hanging (In-Line), Through Hole
Number of Positions/Contacts	3 Conductors, 2 Conductors	2 - 3 Conductors
Operating Temperature	-	-40 °C
Operating Temperature	-	105 ░C
Shielding	Unshielded	Unshielded
Termination	Solder Eyelet(s)	Solder Eyelet(s)
Thread Size	7/16"-32	7/16"-32, 5/16"-32
Voltage - Rated	30 V	24 - 30 V

CONN PWR JACK 2X5.5MM SOLDER

Part	Termination	Housing Material	Features	Gender	Contact Material - Plating [custom]	Actual Diameter	Actual Diameter	Mounting Feature	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Voltage - Rated	Body Material	Body Color	Ingress Protection	Contact Material	Thread Size	Shielding	Connector Type	Current Rating (Amps)	Internal Switch(s)	Includes	Number of Positions/Contacts	Mounting Type	Contact Material - Plating	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]
Switchcraft Inc. L722AS	Solder Eyelet(s)	Thermoplastic	Mounting Hardware, Thread Lock	Male	Silver	0.079 "	2 mm	Bulkhead - Front Side Nut	0.079 in, 0.217 "	2 mm, 5.5 mm	30 V	Copper Alloy	Black, Silver	IP68	Copper Alloy	7/16"-32	Unshielded	Jack	5 A	Normally Closed, Single Switch	1 Connector, 1 Nut, 1 O-Ring, 1 Washer	2 Conductors, 3 Conductors
Switchcraft Inc. L722ACF	Solder Eyelet(s)	Thermoplastic	Strain Relief	Male		0.079 "	2 mm		0.079 in	2 mm	24 VDC	Copper Alloy	Black, Silver		Copper Alloy		Unshielded	Jack	5 A			2 Conductors, 3 Conductors	Free Hanging (In-Line)	Tin	Black	-40 °C	105 ░C
Switchcraft Inc. L722AC	Solder Eyelet(s)	Thermoplastic		Male		0.079 "	2 mm		0.079 in	2 mm	24 VDC	Copper Alloy	Black, Silver		Copper Alloy		Unshielded	Jack	5 A			2 Conductors, 3 Conductors	Free Hanging (In-Line)	Tin	Black	-40 °C	105 ░C
Switchcraft Inc. L722AH	Solder Eyelet(s)	Thermoplastic		Male	Silver						24 VDC	Copper Alloy	Silver, White		Copper Alloy	5/16"-32	Unshielded	Jack		Single Switch	Connector, Nut, Washer	2 Conductors, 3 Conductors	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

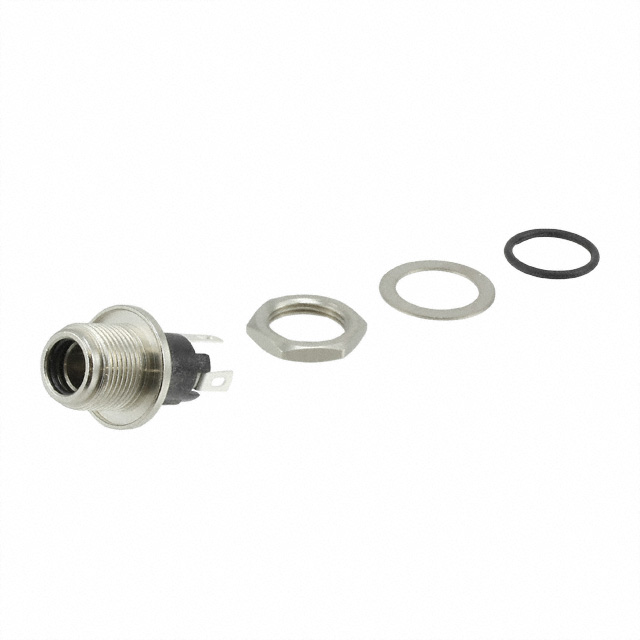

Power Barrel Connector Jack 2.00mm ID (0.079"), 5.50mm OD (0.217") Panel Mount
