61-6451.4277
ActiveEMERGENCY STOP SWITCH, SPST-NC, SPST-NO, PUSH-PULL, QUICK CONNECT, SOLDER, 5 A, 250 V
Deep-Dive with AI
Search across all available documentation for this part.
61-6451.4277
ActiveEMERGENCY STOP SWITCH, SPST-NC, SPST-NO, PUSH-PULL, QUICK CONNECT, SOLDER, 5 A, 250 V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 61-6451.4277 | 61-6451 Series |
|---|---|---|
| Circuit | DPST-NO/NC | SPST-NC, DPST-NO/NC, DPST-NC |
| Ingress Protection | IP69K, IP67 | IP69K, IP67 |
| Mounting Type | Panel Mount, Front | Panel Mount, Front |
| Operating Temperature [Max] | 55 °C | 55 °C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Panel Cutout Dimensions [diameter] | 16 mm | 16 mm |
| Reset Operation | Twist | Twist |
| Switch Function | On-Off, Off-On | On-Off, Off-On |
| Termination Style | 0.11 in | 0.11 in |
| Termination Style | Quick Connect, Solder | Quick Connect, Solder |
| Termination Style | 2.8 mm | 2.8 mm |
61-6451 Series
SWITCH E-STOP TWIST RESET
| Part | Switch Function | Termination Style | Termination Style | Termination Style | Reset Operation | Mounting Type | Circuit | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Panel Cutout Dimensions [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|
EAO 61-6451.4247 | On-Off | 0.11 in | Quick Connect, Solder | 2.8 mm | Twist | Panel Mount, Front | SPST-NC | 55 °C | -25 °C | IP67, IP69K | 16 mm |
EAO 61-6451.4277 | Off-On, On-Off | 0.11 in | Quick Connect, Solder | 2.8 mm | Twist | Panel Mount, Front | DPST-NO/NC | 55 °C | -25 °C | IP67, IP69K | 16 mm |
EAO 61-6451.4257 | On-Off | 0.11 in | Quick Connect, Solder | 2.8 mm | Twist | Panel Mount, Front | DPST-NC | 55 °C | -25 °C | IP67, IP69K | 16 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
61-6451 Series

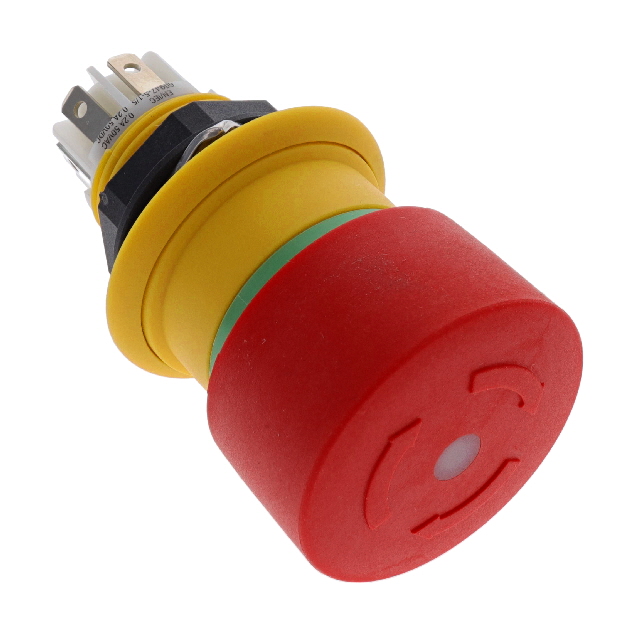

The 61-6451.4277 from EAO is an emergency-stop switch compact with foolproof EN IEC 60947-5-5 and Ø 27mm front dimension. The 61 series E-Stop compact switch is a robust, reliable, low back panel depth switch ideal for use in space critical applications. The robust mono-block design has a fool proof, trigger action mechanism to break the electrical contacts and a green indication ring to show whether the switch is actuated. The Series 61 E-Stop compact satisfies the needs of use, through rigorous material selection and a robust build quality that meets IP69K, the highest degree of protection against dirt and dust ingress.
