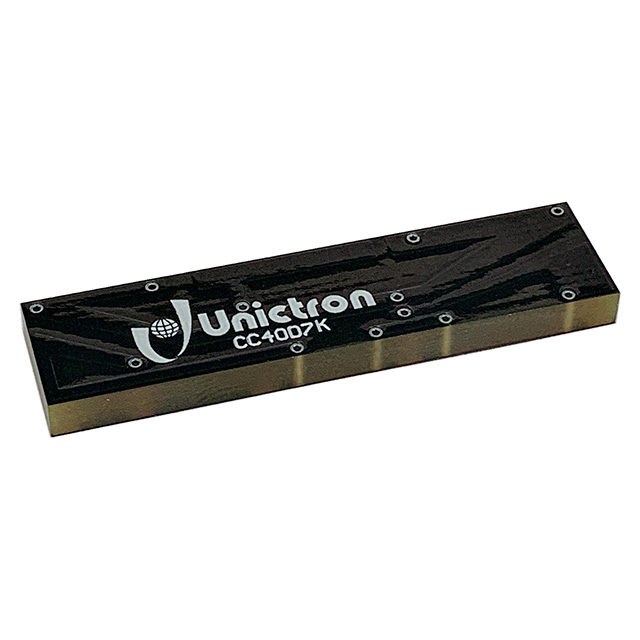

H2UE6P1K2R0100
ActiveUnictron Technologies Corporation
GSM 3G CHIP 824-960 1710-2170 MH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
H2UE6P1K2R0100
ActiveUnictron Technologies Corporation
GSM 3G CHIP 824-960 1710-2170 MH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | H2UE6P1K2R0100 |
|---|---|
| Antenna Type | Chip |
| Applications | GSM, 3G |
| Frequency (Center/Band) | 892 MHz, 1.94 GHz |
| Frequency Range [Max] | 960 MHz, 2.17 GHz |
| Frequency Range [Min] | 1.71 GHz, 824 MHz |
| Gain | 1.7 dBi, 2.9 dBi |
| Height (Max) | 3.2 mm |
| Height (Max) [Max] | 0.126 in |
| Mounting Type | Surface Mount |
| Number of Bands | 2 |
| Power - Max [Max] | 2 W |
| RF Family/Standard | Cellular |
| Termination | Solder |
| VSWR | 3 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.62 | |
| Digi-Reel® | 1 | $ 5.62 | ||
| Tape & Reel (TR) | 500 | $ 3.52 | ||
| 2000 | $ 2.82 | |||
Description
General part information
H2UE6P1K2R0100
RF ANTENNA 3G, GSM Chip Solder Surface Mount
