1327C SL005

Active

ALPHA WIRE

MULTI-PAIR 30COND 22AWG

Search across all available documentation for this part.

Active

ALPHA WIRE

MULTI-PAIR 30COND 22AWG

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1327C SL005	1327C Series

Cable Type	Multi-Pair	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	7	7
Conductor Strand [custom]	30 AWG	30 AWG
Jacket (Insulation) Diameter [diameter]	11.68 mm	11.68 mm
Jacket (Insulation) Diameter [diameter]	0.46 in	0.46 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.04 in	0.04 in
Jacket (Insulation) Thickness	1.016 mm	1.016 mm
Jacket Color	Slate	Slate
Length	-	1000 ft
Length	-	304.8 m
Length [x]	30.5 m	30.5 m
Length [x]	100 ft	100 ft
Number of Conductors	30 (15 Pair Twisted)	30 (15 Pair Twisted)
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-20 C	-20 C
Usage	Control, Communication	Control, Communication
Voltage	300 V	300 V
Wire Gauge	22 AWG	22 AWG

MULTI-PAIR 30COND 22AWG

Part	Voltage	Jacket Color	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Jacket (Insulation) Material	Number of Conductors	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length [x]	Length [x]	Wire Gauge	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Insulation	Usage	Length	Length
ALPHA WIRE 1327C SL005	300 V	Slate	Multi-Pair	7	30 AWG	-20 C	80 C	Copper, Tinned	Poly-Vinyl Chloride (PVC)	30 (15 Pair Twisted)	11.68 mm	0.46 in	30.5 m	100 ft	22 AWG	0.04 in	1.016 mm	Poly-Vinyl Chloride (PVC)	Communication, Control
ALPHA WIRE 1327C SL001	300 V	Slate	Multi-Pair	7	30 AWG	-20 C	80 C	Copper, Tinned	Poly-Vinyl Chloride (PVC)	30 (15 Pair Twisted)	11.68 mm	0.46 in			22 AWG	0.04 in	1.016 mm	Poly-Vinyl Chloride (PVC)	Communication, Control	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 7.67

General part information

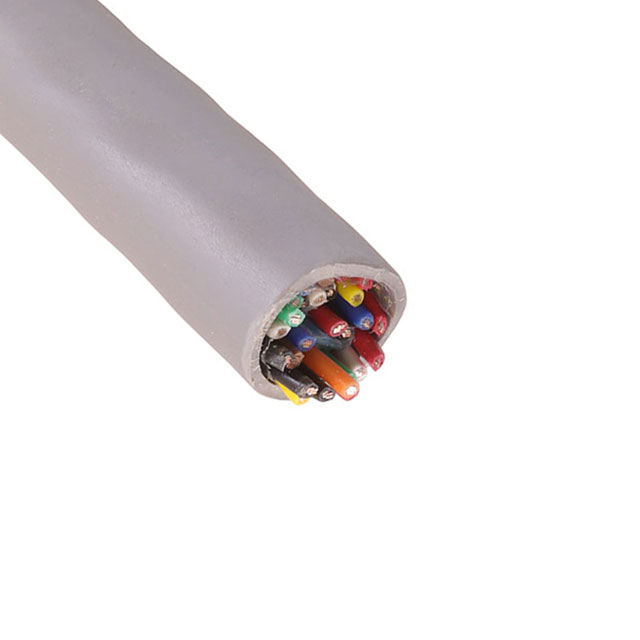

30 (15 Pair Twisted) Conductor Multi-Pair Cable Slate 22 AWG 100.0' (30.5m)
