TMMBAT48FILM

Active

STMicroelectronics

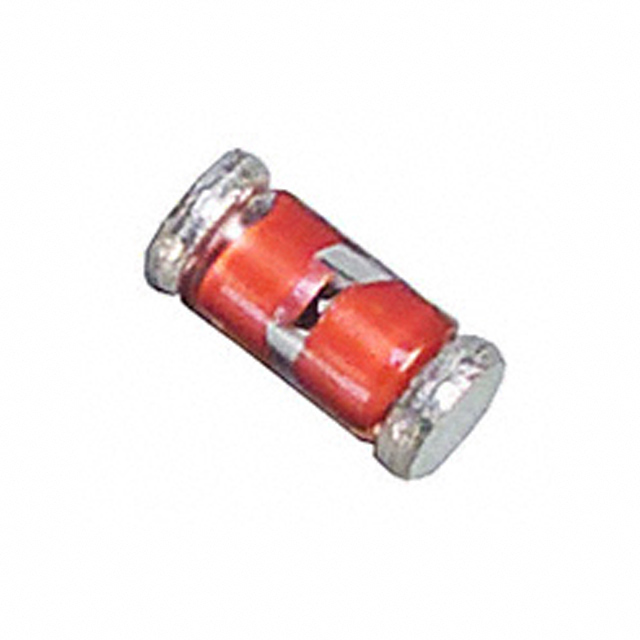

DIODE SCHOTT 40V 350MA MINI MELF

Search across all available documentation for this part.

Active

STMicroelectronics

DIODE SCHOTT 40V 350MA MINI MELF

Technical Specifications

Parameters and characteristics for this part

Specification	TMMBAT48FILM

Capacitance @ Vr, F	20 pF
Current - Average Rectified (Io)	350 mA
Current - Reverse Leakage @ Vr	25 µA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	125 °C
Operating Temperature - Junction [Min]	-65 C
Package / Case	DO-213AA (Glass)
Reverse Recovery Time (trr)	10 ns
Speed	200 mA, 500 ns
Supplier Device Package	Mini MELF
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	40 V
Voltage - Forward (Vf) (Max) @ If	750 mV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DIODE SCHOTT 40V 350MA MINI MELF

Part	Speed	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If	Supplier Device Package	Mounting Type	Technology	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Reverse Recovery Time (trr)	Current - Average Rectified (Io)	Voltage - DC Reverse (Vr) (Max) [Max]	Package / Case	Capacitance @ Vr, F
STMicroelectronics TMMBAT48FILM	200 mA, 500 ns	25 µA	750 mV	Mini MELF	Surface Mount	Schottky	125 °C	-65 C	10 ns	350 mA	40 V	DO-213AA (Glass)	20 pF

General part information

Diode 40 V 350mA Surface Mount Mini MELF
