102TL2-3

Active

Honeywell Sensing and Productivity Solutions

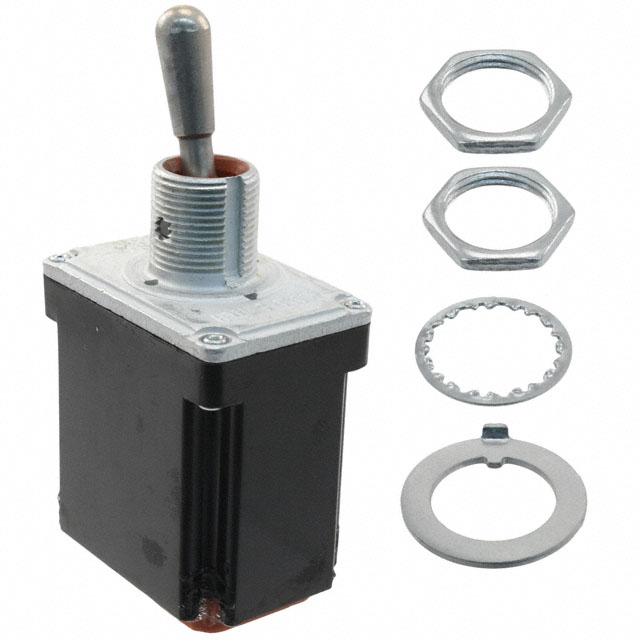

SWITCH TOGGLE DPDT 7.5A 115V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

102TL2-3

Active

Honeywell Sensing and Productivity Solutions

SWITCH TOGGLE DPDT 7.5A 115V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 243.10
		10	$ 209.53
		25	$ 203.84

Description

General part information

102TL2 Series

Toggle Switch DPDT Panel Mount

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	102TL2-3	102TL2 Series

Actuator Length [x]	17.27 mm	16.5 - 41.15 mm
Actuator Material	Nickel Plated	Nickel Plated
Actuator Type	Standard Round	Locking Lever, Standard Round, Paddle, Flatted
Bushing Thread	15/32-32	15/32-32
Circuit	DPDT	DPDT, SP3T, SPST-NO
Current Rating (Amps)	7.5 A	6 - 100 A
Features	-	Black Anodized, Jumper needed to achieve triple throw, Sealed
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	Environment Sealed	Environment Sealed
Operating Temperature [Max]	71 °C	71 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Panel Cutout Dimensions [diameter]	12.4 mm	12.4 mm
Switch Function	On-On	On-Mom, Mom-Off-Mom, On-On, Mom-On-Mom, On-On-On, On-Off-On, Off-Mom
Termination Style	IWTS	IWTS
Voltage Rating - AC	115 V	115 - 250 V
Voltage Rating - DC	30 V	28 - 30 V

102TL2 Series

SWITCH TOGGLE DPDT 7.5A 115V

Part	Circuit	Current Rating (Amps)	Switch Function	Actuator Type	Panel Cutout Dimensions [diameter]	Actuator Material	Bushing Thread	Voltage Rating - AC	Illumination	Termination Style	Actuator Length [x]	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Features
Honeywell Sensing and Productivity Solutions 102TL2-8F	DPDT	7.5 A	On-Mom	Locking Lever	12.4 mm	Nickel Plated	15/32-32	115 V	Non-Illuminated	IWTS	26.67 mm	30 V	71 °C	-65 ░C	Environment Sealed
Honeywell Sensing and Productivity Solutions 102TL2-7	DPDT	7.5 A	Mom-Off-Mom	Standard Round	12.4 mm	Nickel Plated	15/32-32	115 V	Non-Illuminated	IWTS	17.27 mm	30 V	71 °C	-65 ░C	Environment Sealed
Honeywell Sensing and Productivity Solutions 102TL2259-7	DPDT	7.5 A	Mom-Off-Mom	Paddle	12.4 mm	Nickel Plated	15/32-32	125 V	Non-Illuminated	IWTS	41.15 mm	28 V	71 °C	-65 ░C	Environment Sealed	Black Anodized
Honeywell Sensing and Productivity Solutions 102TL2218-3	DPDT	7.5 A	On-On	Standard Round	12.4 mm	Nickel Plated	15/32-32	115 V	Non-Illuminated	IWTS	17.27 mm	30 V	71 °C	-65 ░C	Environment Sealed
Honeywell Sensing and Productivity Solutions 102TL2-70E	DPDT	7.5 A	Mom-On-Mom	Locking Lever	12.4 mm	Nickel Plated	15/32-32	115 V	Non-Illuminated	IWTS	26.67 mm	30 V	71 °C	-65 ░C	Environment Sealed
Honeywell Sensing and Productivity Solutions 102TL2164-7	DPDT	6 A, 7.5 A	Mom-Off-Mom	Flatted	12.4 mm	Nickel Plated	15/32-32	250 V	Non-Illuminated	IWTS	16.51 mm	28 V	71 °C	-65 ░C	Environment Sealed
Honeywell Sensing and Productivity Solutions 102TL2887-70	DPDT	100 mA	Mom-On-Mom	Standard Round	12.4 mm	Nickel Plated	15/32-32	115 V	Non-Illuminated	IWTS	17.27 mm	28 V	71 °C	-65 ░C	Environment Sealed
Honeywell Sensing and Productivity Solutions 102TL2-10	SP3T	7.5 A	On-On-On	Standard Round	12.4 mm	Nickel Plated	15/32-32	115 V	Non-Illuminated	IWTS	17.27 mm	30 V	71 °C	-65 ░C	Environment Sealed	Jumper needed to achieve triple throw
Honeywell Sensing and Productivity Solutions 102TL2841-1	DPDT	100 mA	On-Off-On	Flatted	12.4 mm	Nickel Plated	15/32-32	115 V	Non-Illuminated	IWTS	16.51 mm	28 V	71 °C	-65 ░C	Environment Sealed
Honeywell Sensing and Productivity Solutions 102TL2-51	DPDT	7.5 A	On-Mom	Standard Round	12.4 mm	Nickel Plated	15/32-32	115 V	Non-Illuminated	IWTS	17.27 mm	30 V	71 °C	-65 ░C	Environment Sealed
