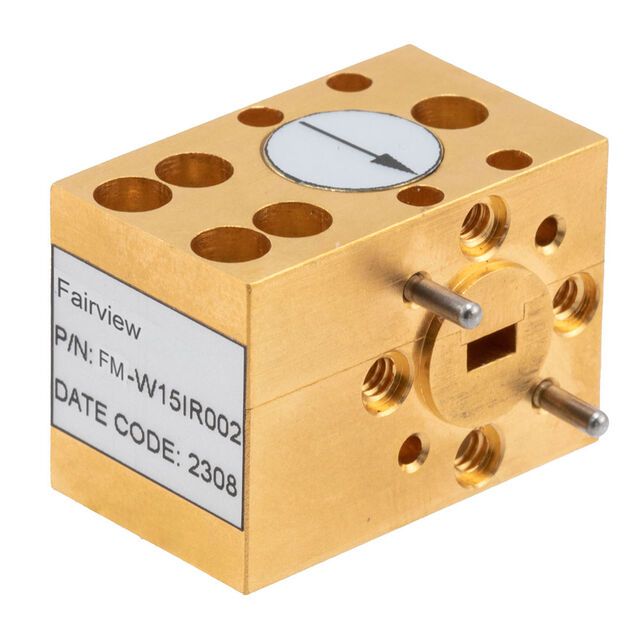

FM-W15IR002
ActiveFairview Microwave
WG ISOLATOR WR-15 65-71 GHZ 15 D
FM-W15IR002
ActiveFairview Microwave
WG ISOLATOR WR-15 65-71 GHZ 15 D
Description
General part information
FM-W15IR002
WG ISOLATOR WR-15 65-71 GHZ 15 D
Technical Specifications
Parameters and characteristics for this part
| Specification | FM-W15IR002 |
|---|---|
| Frequency (Max) | 71 GHz |
| Frequency (Min) | 65 GHz |
| Insertion Loss (Max) | 0.6 dB |
| Isolation (Min) | 15 dB |
| Package / Case | Module |
| Package Name | Module |
| Power - Average Forward | 5 W |
| Type | Isolator |
| VSWR | 1.4 |
