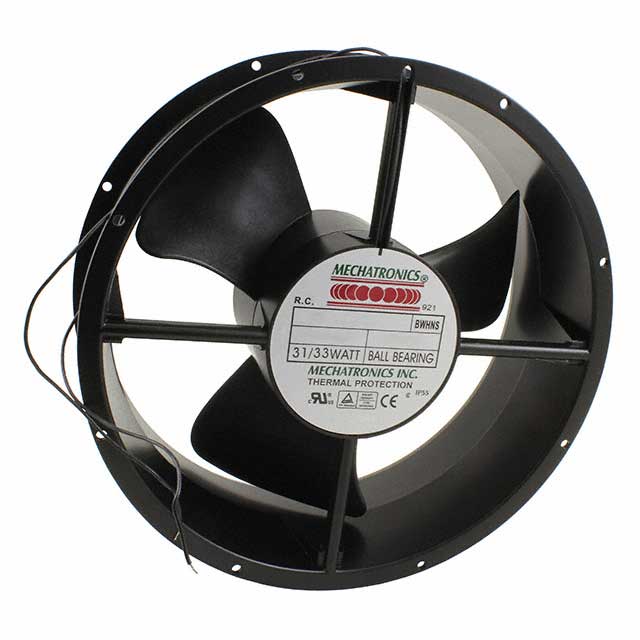

UF25HC12-BWHR
ActiveMechatronics Fan Group
FAN AXIAL 254X107MM 115VAC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
UF25HC12-BWHR
ActiveMechatronics Fan Group
FAN AXIAL 254X107MM 115VAC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | UF25HC12-BWHR | UF25H Series |
|---|---|---|
| Air Flow | 23.8 mł/min | 23.8 mł/min |
| Air Flow | 850 CFM | 850 CFM |
| Approval Agency | CE, cUL, TUV, UL | CE, cUL, TUV, UL |
| Bearing Type | Ball | Ball |
| Current Rating (Amps) | 1.07 A | 0.5 - 1.07 A |
| Current Rating (Amps) | - | 0.5 A |
| Current Rating (Amps) | - | 1.07 A |
| Fan Type | Tubeaxial | Tubeaxial |
| Features | Thermal Overload Protector (TOP), Permanent Split Capacitor Motor | Dual Voltage, Thermal Overload Protector (TOP), Permanent Split Capacitor Motor |
| Material - Blade | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) |
| Material - Frame | Aluminum | Aluminum |
| Noise | 65 dB | 65 dB |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Power (Watts) | 125 W | 125 W |
| RPM | 2750 RPM | 2750 RPM |
| Size / Dimension | Round | Round |
| Size / Dimension [diameter] | 10 in | 10 in |
| Static Pressure | 169.4 Pa | 169.4 Pa |
| Static Pressure | 0.68 in H2O | 0.68 in H2O |
| Termination | 2 Wire Leads | 2 Wire Leads, 2 Terminals |
| Voltage - Rated | 115 VAC | 115 - 230 VAC |
| Voltage - Rated | - | 230 VAC |
| Voltage - Rated | - | 115 VAC |
| Width [x] | 107 mm | 107 mm |
UF25H Series
FAN AXIAL 254X107MM 115/230V WR
| Part | Features | Operating Temperature [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Voltage - Rated [Max] | Voltage - Rated [Min] | Power (Watts) | Noise | Air Flow | Air Flow | Termination | Static Pressure | Static Pressure | Material - Frame | Current Rating (Amps) [Min] | Current Rating (Amps) [Max] | Bearing Type | Fan Type | Approval Agency | Size / Dimension [diameter] | Size / Dimension | Material - Blade | Width [x] | RPM | Current Rating (Amps) | Voltage - Rated |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Mechatronics Fan Group UF25HC12/23-BWHR | Dual Voltage, Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 70 °C | 70 °C | -40 °C | -40 °C | 230 VAC | 115 VAC | 125 W | 65 dB | 23.8 mł/min | 850 CFM | 2 Wire Leads | 169.4 Pa | 0.68 in H2O | Aluminum | 0.5 A | 1.07 A | Ball | Tubeaxial | CE, cUL, TUV, UL | 10 in | Round | Polybutylene Terephthalate (PBT) | 107 mm | 2750 RPM | ||
Mechatronics Fan Group UF25HC23-BTHR | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 70 °C | 70 °C | -40 °C | -40 °C | 125 W | 65 dB | 23.8 mł/min | 850 CFM | 2 Terminals | 169.4 Pa | 0.68 in H2O | Aluminum | Ball | Tubeaxial | CE, cUL, TUV, UL | 10 in | Round | Polybutylene Terephthalate (PBT) | 107 mm | 2750 RPM | 0.5 A | 230 VAC | ||||
Mechatronics Fan Group UF25HC12-BWHR | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 70 °C | 70 °C | -40 °C | -40 °C | 125 W | 65 dB | 23.8 mł/min | 850 CFM | 2 Wire Leads | 169.4 Pa | 0.68 in H2O | Aluminum | Ball | Tubeaxial | CE, cUL, TUV, UL | 10 in | Round | Polybutylene Terephthalate (PBT) | 107 mm | 2750 RPM | 1.07 A | 115 VAC | ||||
Mechatronics Fan Group UF25HC12-BTHR | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 70 °C | 70 °C | -40 °C | -40 °C | 125 W | 65 dB | 23.8 mł/min | 850 CFM | 2 Terminals | 169.4 Pa | 0.68 in H2O | Aluminum | Ball | Tubeaxial | CE, cUL, TUV, UL | 10 in | Round | Polybutylene Terephthalate (PBT) | 107 mm | 2750 RPM | 1.07 A | 115 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 91.47 | |
Description
General part information
UF25H Series
Fan Tubeaxial 115VAC Round - 254mm Dia Ball 850.0 CFM (23.80m³/min) 2 Wire Leads
