DPM 750S-EB-W

Active

Lascar Electronics

PROCESS METER LCD PNL MOUNT

Search across all available documentation for this part.

Active

Lascar Electronics

PROCESS METER LCD PNL MOUNT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	DPM 750S-EB-W	DPM 750S Series

Display Characters - Height [z]	0.5 in	0.5 in
Display Characters - Height [z]	12.7 mm	12.7 mm
Display Type	LCD, White Characters, Backlight	LCD, White Characters, Backlight
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Measuring Range [Max]	0.2 VDC	0.2 VDC
Measuring Range [Min]	-200 mV	-200 mV
Measuring Type	Voltage	Voltage
Number of Characters Per Row	3.5	3.5
Output Type	Reference	Reference
Panel Cutout Dimensions [x]	62 mm	62 mm
Panel Cutout Dimensions [y]	32 mm	32 mm
Termination Style	PC Pin	PC Pin
Type	Voltmeter	Voltmeter
Voltage - Supply [Max]	7.5 V	5.6 - 7.5 V
Voltage - Supply [Min]	4.75 V	4.75 - 5 V

PROCESS METER LCD PNL MOUNT

Part	Display Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Measuring Range [Min]	Measuring Range [Max]	Termination Style	Ingress Protection	Output Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Number of Characters Per Row	Display Characters - Height [z]	Display Characters - Height [z]	Measuring Type	Type
Lascar Electronics DPM 750S-EB-W	Backlight, LCD, White Characters	7.5 V	4.75 V	-200 mV	0.2 VDC	PC Pin	IP67 - Dust Tight, Waterproof	Reference	62 mm	32 mm	3.5	0.5 in	12.7 mm	Voltage	Voltmeter
Lascar Electronics DPM 750S-BL		5.6 V	5 V	-200 mV	0.2 VDC	PC Pin		Reference	62 mm	32 mm	3.5	0.5 in	12.7 mm	Voltage	Voltmeter

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 67.99

General part information

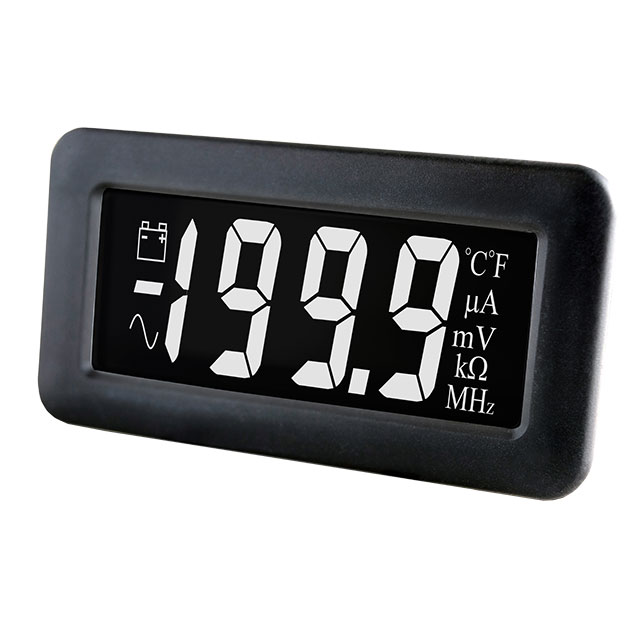

Voltmeter LCD - White Characters, Backlight Display Panel Mount
