Description
General part information
1107047

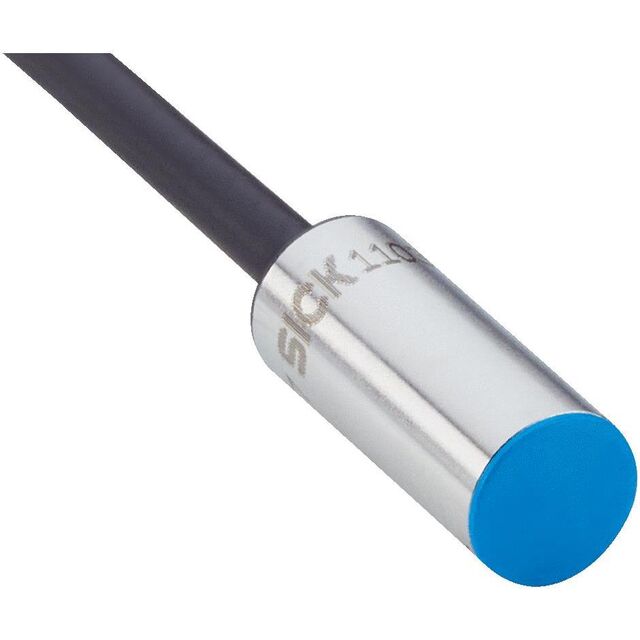

Inductive Proximity Sensor 0.118" (3mm) IP67 Cylinder
Technical Specifications
Parameters and characteristics for this part
| Specification | 1107047 |
|---|---|
| Indicator | LED |
| Ingress Protection | IP67 |
| Material - Body | Stainless Steel |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | NPN-NO |
| Package / Case | Cylinder |
| Sensing Distance | 0.118 " |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Cable Leads |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
