770669-4

Active

TE Connectivity AMP Connectors

CONN HEADER R/A 23POS 4MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER R/A 23POS 4MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	770669-4	770669 Series

Applications	Industrial, Automotive	Industrial, Automotive
Connector Type	Header	Header
Contact Finish - Mating	-	Gold-Palladium
Contact Material	Brass	Brass
Contact Shape	Circular	Circular
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Locking Ramp	Locking Ramp
Features	Sealable, Board Guide	Sealable, Board Guide
Insulation Color	Gray	Gray, Natural
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Through Hole, Right Angle, Panel Mount	Through Hole, Right Angle, Panel Mount
Number of Positions	23	23
Number of Positions Loaded	All	All
Number of Rows	3	3
Operating Temperature [Max]	105 ░C	105 - 125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch - Mating	0.157 "	0.157 "
Pitch - Mating	4 mm	4 mm
Row Spacing - Mating	0.157 in	0.157 in
Row Spacing - Mating	4 mm	4 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	250 VAC	250 VAC

CONN HEADER R/A 23POS 4MM

Part	Style	Connector Type	Termination	Shrouding	Current Rating (Amps)	Fastening Type	Insulation Material	Pitch - Mating	Pitch - Mating	Contact Material	Contact Shape	Row Spacing - Mating	Row Spacing - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Contact Finish - Mating	Mounting Type	Insulation Color	Number of Rows	Voltage Rating	Number of Positions Loaded	Contact Type	Features	Number of Positions
TE Connectivity AMP Connectors 1-770669-4	Board to Cable/Wire	Header	Solder	Shrouded - 4 Wall	Varies by Wire Gauge	Locking Ramp	Polybutylene Terephthalate (PBT), Glass Filled	0.157 "	4 mm	Brass	Circular	0.157 in	4 mm	125 °C	-40 °C	Automotive, Industrial	Gold-Palladium	Panel Mount, Right Angle, Through Hole	Gray	3	250 VAC	All	Male Pin	Board Guide, Sealable	23
TE Connectivity AMP Connectors 1-770669-2	Board to Cable/Wire	Header	Solder	Shrouded - 4 Wall	Varies by Wire Gauge	Locking Ramp	Polybutylene Terephthalate (PBT), Glass Filled	0.157 "	4 mm	Brass	Circular	0.157 in	4 mm	125 °C	-40 °C	Automotive, Industrial	Gold-Palladium	Panel Mount, Right Angle, Through Hole	Natural	3	250 VAC	All	Male Pin	Board Guide, Sealable	23
TE Connectivity AMP Connectors 770669-4	Board to Cable/Wire	Header	Solder	Shrouded - 4 Wall	Varies by Wire Gauge	Locking Ramp	Polybutylene Terephthalate (PBT), Glass Filled	0.157 "	4 mm	Brass	Circular	0.157 in	4 mm	105 ░C	-40 °C	Automotive, Industrial		Panel Mount, Right Angle, Through Hole	Gray	3	250 VAC	All	Male Pin	Board Guide, Sealable	23

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

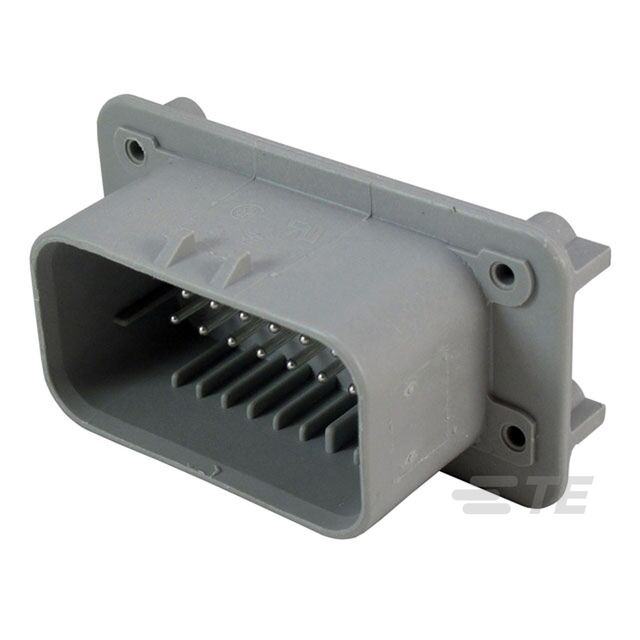

Connector Header Panel Mount, Through Hole, Right Angle 23 position 0.157" (4.00mm)
