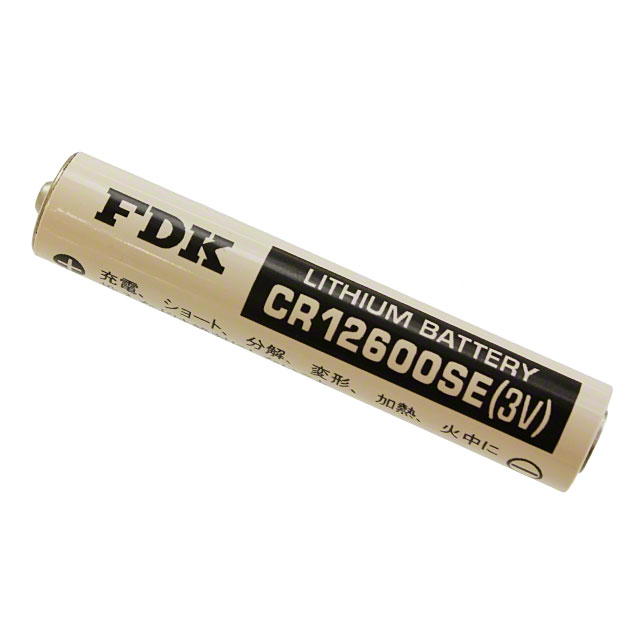

Specification	CR12600SE

Battery Cell Size	CR12600
Battery Chemistry	Lithium Manganese Dioxide
Capacity (Charge)	1.5 Ah
Discharge Rate (Current)	1 mA
Shipping Info	Due to restrictions, only ground shipment is allowed.
Size / Dimension Diameter	0.47 in
Size / Dimension Height	2.36 in
Termination Style	Button Top (Extending)
Voltage - Rated	3 VDC
Weight	15 g
