EM 239
ActiveBopla Enclosures
BOX PLASTIC GRAY 9.84"L X 6.3"W
EM 239
ActiveBopla Enclosures
BOX PLASTIC GRAY 9.84"L X 6.3"W
Description
General part information
EM 239

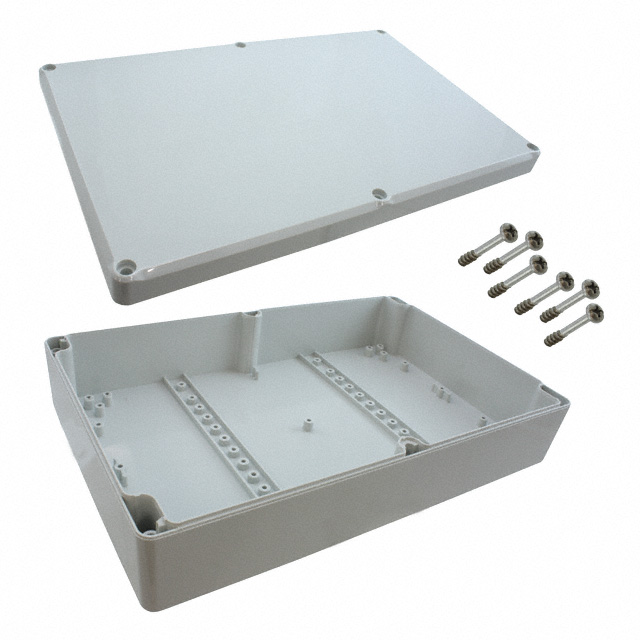

Box Plastic, Polycarbonate Gray Cover Included 9.843" L x 6.299" W (250.00mm x 160.00mm) X 2.244" (57.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | EM 239 |
|---|---|
| Area (L x W) | 62 in² |
| Color | Gray |
| Container Type | Box |
| Design | Cover Included |
| Features | PCB Supports |
| Height | 2.244 in |
| Material | Polycarbonate (PC), Plastic, Polycarbonate |
| Material Flammability Rating | UL94 V-2 |
| Ratings | NEMA 12, IP65 |
| Size / Dimension Length | 9.843 in |
| Size / Dimension Width | 6.299 in |
| Thickness | 0.118 in |
| Weight | 1 lbs |
