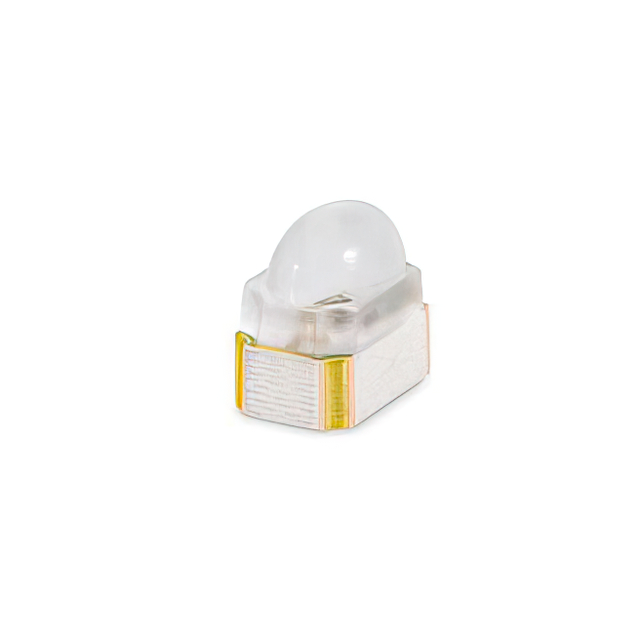

XS-IR04A05-802
ActiveXSSY Optoelectronics Co.,Ltd.
IR EMITTER 940NM 70MA 1208 SMD
XS-IR04A05-802
ActiveXSSY Optoelectronics Co.,Ltd.
IR EMITTER 940NM 70MA 1208 SMD
Description
General part information
XS-IR04A05-802
Infrared (IR) Emitter 940nm 1.3V ~ 1.5V 70mA 10mW/sr @ 20mA 20°, 80° 2-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | XS-IR04A05-802 |
|---|---|
| Current - DC Forward (If) (Max) | 70 mA |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -30 °C |
| Orientation | Top View |
| Package / Case | No Lead, 2-SMD |
| Radiant Intensity (Ie) Min | 10 mW/sr |
| Type | Infrared (IR) |
| Viewing Angle (Horizontal) | 20 ° |
| Viewing Angle (Vertical) | 80 ° |
| Voltage - Forward (Vf) (Typ) Maximum | 1.5 V |
| Voltage - Forward (Vf) (Typ) Minimum | 1.3 V |
| Wavelength | 940 nm |
