62400-4-S
ActiveO.C. White Co.

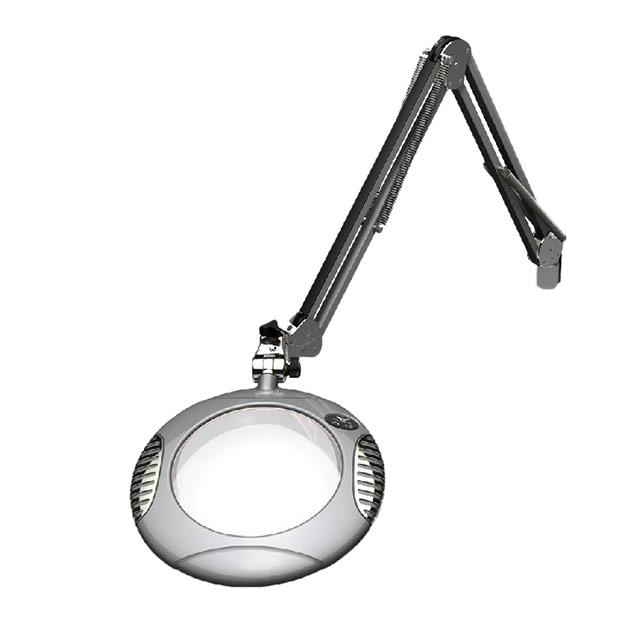

LAMP MAGNIFIER LED 7.5" CLAMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
62400-4-S
ActiveO.C. White Co.
LAMP MAGNIFIER LED 7.5" CLAMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 62400-4-S | 62400 Series |
|---|---|---|
| Arm [x] | 43 in | 43 in |
| Arm [x] | 1092.2 mm | 1092.2 mm |
| Bulb | LED, White | LED, White |
| Color | Silver | White, Dark Gray, Black, Red, Blue, Silver, Green |
| Cord Length | NEMA 5-15P | NEMA 5-15P |
| Cord Length | 1.83 m | 1.83 m |
| Cord Length | 6 ' | 6 ' |
| Lamp/Magnifier Type | Lamp, Magnifier | Lamp, Magnifier |
| Lens Style/Size | 7.5 in | 7.5 in |
| Lens Style/Size | 4 Diopter (2x) | 4 Diopter (2x) |
| Lens Style/Size | 190.5 mm | 190.5 mm |
| Voltage [Max] | 240 V | 240 V |
| Voltage [Min] | 100 V | 100 V |
62400 Series
LAMP MAGNIFIER LED 7.5" CLAMP
| Part | Cord Length | Cord Length | Cord Length | Lens Style/Size | Lens Style/Size | Lens Style/Size | Lamp/Magnifier Type | Voltage [Max] | Voltage [Min] | Color | Bulb | Arm [x] | Arm [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
O.C. White Co. 62400-4-SW | NEMA 5-15P | 1.83 m | 6 ' | 7.5 in | 4 Diopter (2x) | 190.5 mm | Lamp, Magnifier | 240 V | 100 V | White | LED, White | 43 in | 1092.2 mm |
O.C. White Co. 62400-4-CM | NEMA 5-15P | 1.83 m | 6 ' | 7.5 in | 4 Diopter (2x) | 190.5 mm | Lamp, Magnifier | 240 V | 100 V | Dark Gray | LED, White | 43 in | 1092.2 mm |
O.C. White Co. 62400-4-B | NEMA 5-15P | 1.83 m | 6 ' | 7.5 in | 4 Diopter (2x) | 190.5 mm | Lamp, Magnifier | 240 V | 100 V | Black | LED, White | 43 in | 1092.2 mm |
O.C. White Co. 62400-4-BR | NEMA 5-15P | 1.83 m | 6 ' | 7.5 in | 4 Diopter (2x) | 190.5 mm | Lamp, Magnifier | 240 V | 100 V | Red | LED, White | 43 in | 1092.2 mm |
O.C. White Co. 62400-4-MW | NEMA 5-15P | 1.83 m | 6 ' | 7.5 in | 4 Diopter (2x) | 190.5 mm | Lamp, Magnifier | 240 V | 100 V | White | LED, White | 43 in | 1092.2 mm |
O.C. White Co. 62400-4-SB | NEMA 5-15P | 1.83 m | 6 ' | 7.5 in | 4 Diopter (2x) | 190.5 mm | Lamp, Magnifier | 240 V | 100 V | Blue | LED, White | 43 in | 1092.2 mm |
O.C. White Co. 62400-4-S | NEMA 5-15P | 1.83 m | 6 ' | 7.5 in | 4 Diopter (2x) | 190.5 mm | Lamp, Magnifier | 240 V | 100 V | Silver | LED, White | 43 in | 1092.2 mm |
O.C. White Co. 62400-4-BO | NEMA 5-15P | 1.83 m | 6 ' | 7.5 in | 4 Diopter (2x) | 190.5 mm | Lamp, Magnifier | 240 V | 100 V | LED, White | 43 in | 1092.2 mm | |
O.C. White Co. 62400-4-RG | NEMA 5-15P | 1.83 m | 6 ' | 7.5 in | 4 Diopter (2x) | 190.5 mm | Lamp, Magnifier | 240 V | 100 V | Green | LED, White | 43 in | 1092.2 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 3 | $ 599.00 | |
Description
General part information
62400 Series
Lamp, Magnifier 4 Diopter (2x), 7.50" (190.50mm) Diameter LED, White
