LN69
ObsoletePanasonic Electronic Components

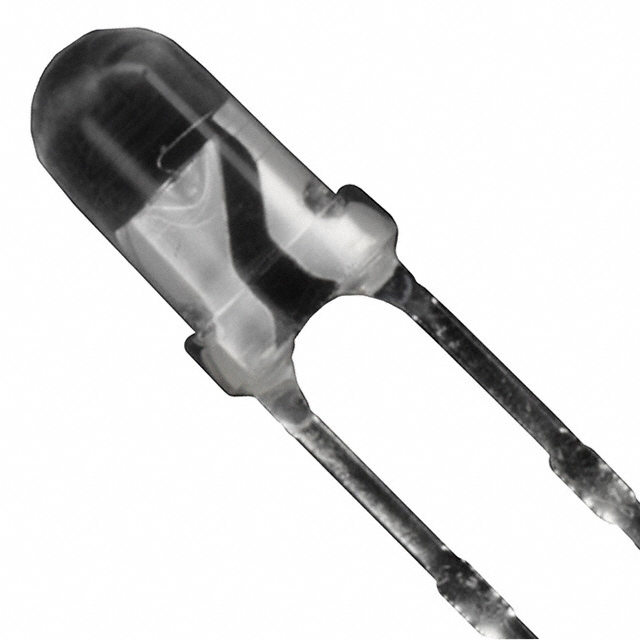

EMITTER IR 940NM 50MA T-1
LN69
ObsoletePanasonic Electronic Components
EMITTER IR 940NM 50MA T-1
Description
General part information
LN69
Infrared (IR) Emitter 940nm 1.3V 50mA 3.5mW/sr @ 50mA 30° T-1
Technical Specifications
Parameters and characteristics for this part
| Specification | LN69 |
|---|---|
| Current - DC Forward (If) (Max) | 50 mA |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Orientation | Top View |
| Package / Case | T-1 |
| Radiant Intensity (Ie) Min | 3.5 mW/sr |
| Type | Infrared (IR) |
| Viewing Angle | 30 ° |
| Voltage - Forward (Vf) (Typ) | 1.3 V |
| Wavelength | 940 nm |
