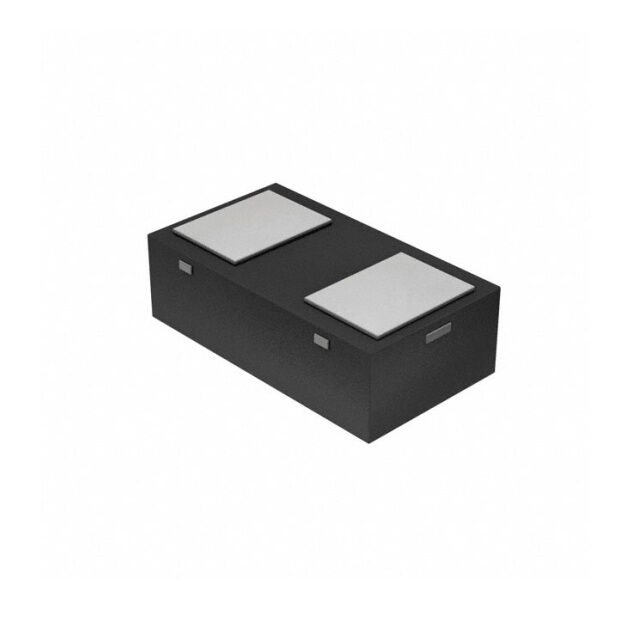

CPDUC24VAS-HF

Active

Comchip Technology

TVS DIODE 24VWM 40VC 0603C

Search across all available documentation for this part.

Active

Comchip Technology

TVS DIODE 24VWM 40VC 0603C

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CPDUC24VAS-HF	CPDUC24 Series

Applications	General Purpose	General Purpose
Bidirectional Channels [custom]	1	1
Capacitance @ Frequency	7 pF	7 pF
Current - Peak Pulse (10/1000µs)	2.5 A	2.5 A
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	125 ¯C	125 ¯C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	0603 (1608 Metric)	0603 (1608 Metric)
Power - Peak Pulse	100 W	95 - 100 W
Power Line Protection	False	False
Supplier Device Package	0603C/SOD-523F	0603C/SOD-523F
Type	Zener	Zener
Unidirectional Channels	-	1
Voltage - Clamping (Max) @ Ipp	-	38 V
Voltage - Clamping (Max) @ Ipp [Max]	40 V	40 V
Voltage - Reverse Standoff (Typ)	24 V	24 V

TVS DIODE 24VWM 40VC 0603C

Part	Voltage - Reverse Standoff (Typ)	Applications	Bidirectional Channels [custom]	Voltage - Clamping (Max) @ Ipp [Max]	Capacitance @ Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Current - Peak Pulse (10/1000µs)	Power - Peak Pulse	Power Line Protection	Type	Supplier Device Package	Mounting Type	Voltage - Clamping (Max) @ Ipp	Unidirectional Channels [custom]
Comchip Technology CPDUC24VAS-HF	24 V	General Purpose	1	40 V	7 pF	125 ¯C	-55 °C	0603 (1608 Metric)	2.5 A	100 W		Zener	0603C/SOD-523F	Surface Mount
Comchip Technology CPDUC24VASU-HF	24 V	General Purpose				125 ¯C	-55 °C	0603 (1608 Metric)	2.5 A	95 W		Zener	0603C/SOD-523F	Surface Mount	38 V	1
