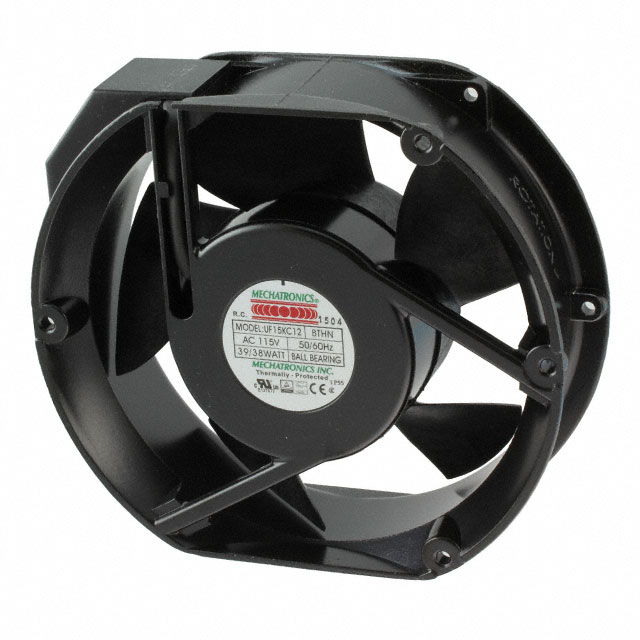

UF15KC12-BTHNR
ActiveMechatronics Bearing Group
FAN AXIAL 172X150X55MM 115VA IP5
Deep-Dive with AI
Search across all available documentation for this part.
UF15KC12-BTHNR
ActiveMechatronics Bearing Group
FAN AXIAL 172X150X55MM 115VA IP5
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | UF15KC12-BTHNR |
|---|---|
| Air Flow | 293 CFM |
| Air Flow | 8.2 m³/min |
| Approval Agency | CE, cUL, TUV, UL |
| Bearing Type | Ball |
| Current Rating (Amps) | 0.34 A |
| Fan Type | Tubeaxial |
| Features | Thermal Overload Protector (TOP), Permanent Split Capacitor Motor |
| Ingress Protection | IP55 - Dust Protected, Water Resistant |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Material - Frame | Aluminum |
| Noise | 60 dB(A) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 38 W |
| RPM | 3400 RPM |
| Size / Dimension | Rectangular/Rounded |
| Size / Dimension [x] | 172 mm |
| Size / Dimension [z] | 150 mm |
| Static Pressure | 0.9 in H2O |
| Static Pressure | 224.2 Pa |
| Termination | 3 Terminals |
| Voltage - Rated | 115 VAC |
| Weight | 1 kg |
| Weight | 2.3 lbs |
| Width [y] | 55 mm |
UF15K Series
| Part | Noise | RPM | Weight | Weight | Power (Watts) | Approval Agency | Fan Type | Features | Voltage - Rated | Width [y] | Material - Frame | Operating Temperature [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Operating Temperature [Max] | Bearing Type | Size / Dimension | Size / Dimension [z] | Size / Dimension [x] | Termination | Material - Blade | Current Rating (Amps) | Static Pressure | Static Pressure | Air Flow | Air Flow | Termination | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Mechatronics Bearing Group | 61 dB(A) | 3250 RPM | 2.4 lbs | 1.1 kg | 45 W | CE cUL TUV UL | Tubeaxial | Reverse Air Flow Thermal Overload Protector (TOP) | 230 VAC | 55 mm | Aluminum | -40 °C | -40 °C | 90 °C | 90 °C | Ball | Rectangular/Rounded | 150 mm | 172 mm | 2 Terminals | Metal | 0.38 A | 124.5 Pa | 0.5 in H2O | 7.14 mł/min | 255 CFM | ||
Mechatronics Bearing Group | 60 dB(A) | 3400 RPM | 2.3 lbs | 1 kg | 38 W | CE cUL TUV UL | Tubeaxial | Permanent Split Capacitor Motor Thermal Overload Protector (TOP) | 115 VAC | 55 mm | Aluminum | -40 °C | -40 °C | 70 °C | 70 °C | Ball | Rectangular/Rounded | 150 mm | 172 mm | 3 Wire Leads | Polybutylene Terephthalate (PBT) | 0.34 A | 224.2 Pa | 0.9 in H2O | 8.2 m³/min | 293 CFM | ||
Mechatronics Bearing Group | 60 dB(A) | 3400 RPM | 2.3 lbs | 1 kg | 38 W | CE cUL TUV UL | Tubeaxial | Permanent Split Capacitor Motor Speed Sensor (Tach) Thermal Overload Protector (TOP) | 115 VAC | 55 mm | Aluminum | -40 °C | -40 °C | 70 °C | 70 °C | Ball | Rectangular/Rounded | 150 mm | 172 mm | 5 Wire Leads | Polybutylene Terephthalate (PBT) | 0.34 A | 224.2 Pa | 0.9 in H2O | 8.2 m³/min | 293 CFM | ||
Mechatronics Bearing Group | 53 dB | 3250 RPM | 2.4 lbs | 1.1 kg | 42 W | CE cUL TUV UL | Tubeaxial | Speed Sensor (Tach) Thermal Overload Protector (TOP) | 115 VAC | 55 mm | Aluminum | -40 °C | -40 °C | 90 °C | 90 °C | Ball | Rectangular/Rounded | 150 mm | 172 mm | Metal | 0.47 A | 156.9 Pa | 0.63 in H2O | 6.44 m³/min | 230 CFM | 3 Terminals | ||
Mechatronics Bearing Group | 60 dB(A) | 3400 RPM | 2.3 lbs | 1 kg | 38 W | CE cUL TUV UL | Tubeaxial | Permanent Split Capacitor Motor Thermal Overload Protector (TOP) | 230 VAC | 55 mm | Aluminum | -40 °C | -40 °C | 70 °C | 70 °C | Ball | Rectangular/Rounded | 150 mm | 172 mm | Polybutylene Terephthalate (PBT) | 0.17 A | 224.2 Pa | 0.9 in H2O | 8.2 m³/min | 293 CFM | 3 Terminals | IP55 - Dust Protected Water Resistant | |
Mechatronics Bearing Group | 60 dB(A) | 3400 RPM | 2.3 lbs | 1 kg | 38 W | CE cUL TUV UL | Tubeaxial | Permanent Split Capacitor Motor Salt Fog Rated Thermal Overload Protector (TOP) | 115 VAC | 55 mm | Aluminum | -40 °C | -40 °C | 70 °C | 70 °C | Ball | Rectangular/Rounded | 150 mm | 172 mm | 4 Wire Leads | Polybutylene Terephthalate (PBT) | 0.34 A | 224.2 Pa | 0.9 in H2O | 8.2 m³/min | 293 CFM | IP55 - Dust Protected Water Resistant | |
Mechatronics Bearing Group | 60 dB(A) | 3400 RPM | 2.3 lbs | 1 kg | 38 W | CE cUL TUV UL | Tubeaxial | Permanent Split Capacitor Motor Salt Fog Rated Speed Sensor (Tach) Thermal Overload Protector (TOP) | 115 VAC | 55 mm | Aluminum | -40 °C | -40 °C | 70 °C | 70 °C | Ball | Rectangular/Rounded | 150 mm | 172 mm | Polybutylene Terephthalate (PBT) | 0.34 A | 224.2 Pa | 0.9 in H2O | 8.2 m³/min | 293 CFM | 5 Terminals | IP55 - Dust Protected Water Resistant | |
Mechatronics Bearing Group | 53 dB | 3250 RPM | 2.4 lbs | 1.1 kg | 42 W | CE cUL TUV UL | Tubeaxial | Thermal Overload Protector (TOP) | 230 VAC | 55 mm | Aluminum | -40 °C | -40 °C | 90 °C | 90 °C | Ball | Rectangular/Rounded | 150 mm | 172 mm | 2 Terminals | Metal | 370 mA | 156.9 Pa | 0.63 in H2O | 6.44 m³/min | 230 CFM | ||
Mechatronics Bearing Group | 60 dB(A) | 3400 RPM | 2.3 lbs | 1 kg | 38 W | CE cUL TUV UL | Tubeaxial | Permanent Split Capacitor Motor Thermal Overload Protector (TOP) | 230 VAC | 55 mm | Aluminum | -40 °C | -40 °C | 70 °C | 70 °C | Ball | Rectangular/Rounded | 150 mm | 172 mm | Polybutylene Terephthalate (PBT) | 0.17 A | 224.2 Pa | 0.9 in H2O | 8.2 m³/min | 293 CFM | 3 Terminals | ||
Mechatronics Bearing Group | 53 dB | 3250 RPM | 2.4 lbs | 1.1 kg | 42 W | CE cUL TUV UL | Tubeaxial | Thermal Overload Protector (TOP) | 115 VAC | 55 mm | Aluminum | -40 °C | -40 °C | 90 °C | 90 °C | Ball | Rectangular/Rounded | 150 mm | 172 mm | 2 Wire Leads | Metal | 750 mA | 156.9 Pa | 0.63 in H2O | 6.44 m³/min | 230 CFM |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 63.23 | |
| 20 | $ 57.21 | |||
| 40 | $ 53.45 | |||
| 60 | $ 52.69 | |||
| 100 | $ 48.55 | |||
Description
General part information
UF15K Series
Fan Tubeaxial 115VAC Rectangular/Rounded - 172mm L x 150mm H Ball 293.0 CFM (8.20m³/min) 3 Terminals
