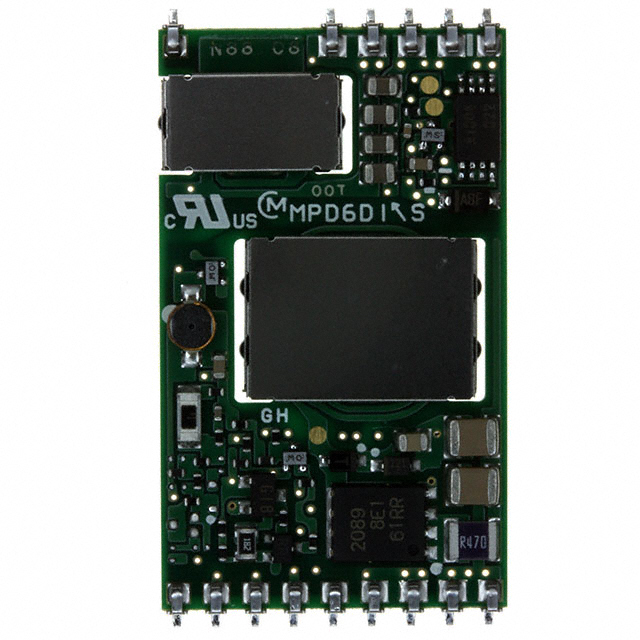

MPD6D108S

Active

Murata Power Solutions Inc.

DC DC CONVERTER 5V 10W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MPD6D108S

Active

Murata Power Solutions Inc.

DC DC CONVERTER 5V 10W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

MPD6D Series

Isolated Module DC DC Converter 1 Output 5V 2A 36V - 75V Input

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MPD6D108S	MPD6D Series

Applications	ITE (Commercial)	ITE (Commercial)
Control Features	Active Low, Enable	Active Low, Enable
Current - Output (Max) [Max]	2 A	2 - 800 A
Efficiency	89 %	79 - 92 %
Features	OCP, OVP, Remote On/Off	OCP, OVP, Remote On/Off, OTP
Mounting Type	Surface Mount	Surface Mount
Number of Outputs	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	18-SMD Module, 15 Leads	17 Leads, 20-SMD Module, 18-SMD Module, 15 Leads, 34-SMD Module
Package / Case	-	29 Leads
Power (Watts)	10 W	10 - 33 W
Size / Dimension	-	31.2 mm
Size / Dimension	-	4.2 mm
Size / Dimension [x]	1.47 "	1.47 - 1.77 "
Size / Dimension [x]	37.3 mm	37.3 - 45 mm
Size / Dimension [y]	0.88 "	0.88 - 1.67 "
Size / Dimension [y]	22.4 mm	22.4 - 42.4 mm
Size / Dimension [z]	0.17 in	0.17 in
Size / Dimension [z]	4.2 mm	4.2 - 4.4 mm
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	75 V	36 - 75 V
Voltage - Input (Min) [Min]	36 V	18 - 36 V
Voltage - Isolation	1.5 kV	1.5 kV
Voltage - Output 1	5 V	1.2 - 12 V

MPD6D Series

DC DC CONVERTER 5.5V 33W

Part	Voltage - Input (Max) [Max]	Package / Case	Applications	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Voltage - Output 1	Control Features	Type	Number of Outputs	Mounting Type	Features	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Voltage - Isolation	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Package / Case	Size / Dimension [y]	Size / Dimension [z]
Murata Power Solutions Inc. MPD6D209S	36 V	17 Leads, 20-SMD Module	ITE (Commercial)	91 %	85 °C	-40 °C	33 W	5.5 V	Active Low, Enable	Isolated Module	1	Surface Mount	OCP, OVP, Remote On/Off	6 A	18 V	1.5 kV
Murata Power Solutions Inc. MPD6D101S	75 V	18-SMD Module, 15 Leads	ITE (Commercial)	88 %	85 °C	-40 °C	10 W	12 V	Active Low, Enable	Isolated Module	1	Surface Mount	OCP, OVP, Remote On/Off	800 mA	36 V	1.5 kV	0.88 "	0.17 in	1.47 "	37.3 mm	22.4 mm	4.2 mm
Murata Power Solutions Inc. MPD6D108S	75 V	18-SMD Module, 15 Leads	ITE (Commercial)	89 %	85 °C	-40 °C	10 W	5 V	Active Low, Enable	Isolated Module	1	Surface Mount	OCP, OVP, Remote On/Off	2 A	36 V	1.5 kV	0.88 "	0.17 in	1.47 "	37.3 mm	22.4 mm	4.2 mm
Murata Power Solutions Inc. MPD6D104S	75 V	18-SMD Module, 15 Leads	ITE (Commercial)	86 %	85 °C	-40 °C	10 W	1.8 V	Active Low, Enable	Isolated Module	1	Surface Mount	OCP, OVP, Remote On/Off	3 A	36 V	1.5 kV	0.88 "	0.17 in	1.47 "	37.3 mm	22.4 mm	4.2 mm
Murata Power Solutions Inc. MPD6D128S	75 V	34-SMD Module	ITE (Commercial)	92 %	85 °C	-40 °C	30 W	5 V		Isolated Module	1	Surface Mount		6 A	36 V	1.5 kV	1.67 "	0.17 in	1.77 in	45 mm	42.4 mm	4.4 mm	29 Leads
Murata Power Solutions Inc. MPD6D117S	75 V	17 Leads, 20-SMD Module	ITE (Commercial)	90 %	85 °C	-40 °C	15 W	3.3 V	Active Low, Enable	Isolated Module	1	Surface Mount	OCP, OTP, OVP, Remote On/Off	4.5 A	36 V	1.5 kV	1.23 in	0.17 in	1.47 "	37.3 mm				31.2 mm	4.2 mm
Murata Power Solutions Inc. MPD6D122S	75 V	34-SMD Module	ITE (Commercial)	84 %	85 °C	-40 °C	30 W	1.2 V		Isolated Module	1	Surface Mount		12 A	36 V	1.5 kV	1.67 "	0.17 in	1.77 in	45 mm	42.4 mm	4.4 mm	29 Leads
Murata Power Solutions Inc. MPD6D102S	75 V	18-SMD Module, 15 Leads	ITE (Commercial)	79 %	85 °C	-40 °C	10 W	1.2 V	Active Low, Enable	Isolated Module	1	Surface Mount	OCP, OVP, Remote On/Off	3.5 A	36 V	1.5 kV	0.88 "	0.17 in	1.47 "	37.3 mm	22.4 mm	4.2 mm
Murata Power Solutions Inc. MPD6D127S	75 V	34-SMD Module	ITE (Commercial)	91 %	85 °C	-40 °C	30 W	3.3 V		Isolated Module	1	Surface Mount			36 V	1.5 kV	1.67 "	0.17 in	1.77 in	45 mm	42.4 mm	4.4 mm	29 Leads
