83336E 0091000

Active

Belden Inc.

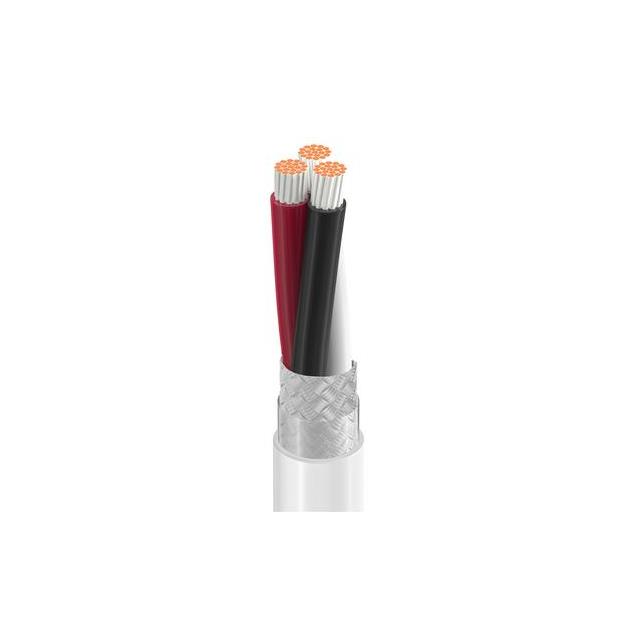

CABLE 3COND 18AWG WHT SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 3COND 18AWG WHT SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	83336E 0091000

Cable Type	Multi-Conductor
Conductor Insulation	Tetrafluoroethylene (TFE)
Conductor Material	Copper, Silver Coated
Conductor Strand [custom]	19
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	0.189 in
Jacket (Insulation) Diameter [diameter]	4.8 mm
Jacket (Insulation) Material	Tetrafluoroethylene (TFE)
Jacket (Insulation) Thickness	0.279 mm
Jacket (Insulation) Thickness	0.011 in
Length	1000 ft
Length	304.8 m
Number of Conductors	3
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Shield Coverage	85 %
Shield Material	Copper, Silver Coated
Shield Type	Braid
Voltage	600 V
Wire Gauge	18 AWG

Part	Wire Gauge	Shield Type	Shield Coverage	Conductor Insulation	Jacket (Insulation) Material	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length [x]	Length [x]	Cable Type	Conductor Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Number of Conductors	Voltage	Shield Material	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length
Belden Inc. 83336E 009500	18 AWG	Braid	85 %	Tetrafluoroethylene (TFE)	Tetrafluoroethylene (TFE)	-65 ░C	200 °C	0.189 in	4.8 mm	500 '	152.4 m	Multi-Conductor	Copper Silver Coated	0.279 mm	0.011 in	3	600 V	Copper Silver Coated	19	30 AWG
Belden Inc. 83336E 009100	18 AWG	Braid	85 %	Tetrafluoroethylene (TFE)	Tetrafluoroethylene (TFE)	-65 ░C	200 °C	0.189 in	4.8 mm	100 ft	30.5 m	Multi-Conductor	Copper Silver Coated	0.279 mm	0.011 in	3	600 V	Copper Silver Coated	19	30 AWG
Belden Inc. 83336E 0091000	18 AWG	Braid	85 %	Tetrafluoroethylene (TFE)	Tetrafluoroethylene (TFE)	-65 ░C	200 °C	0.189 in	4.8 mm			Multi-Conductor	Copper Silver Coated	0.279 mm	0.011 in	3	600 V	Copper Silver Coated	19	30 AWG	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 16.40

General part information

3 Conductor Multi-Conductor Cable White 18 AWG Braid 1000.0' (304.8m)
