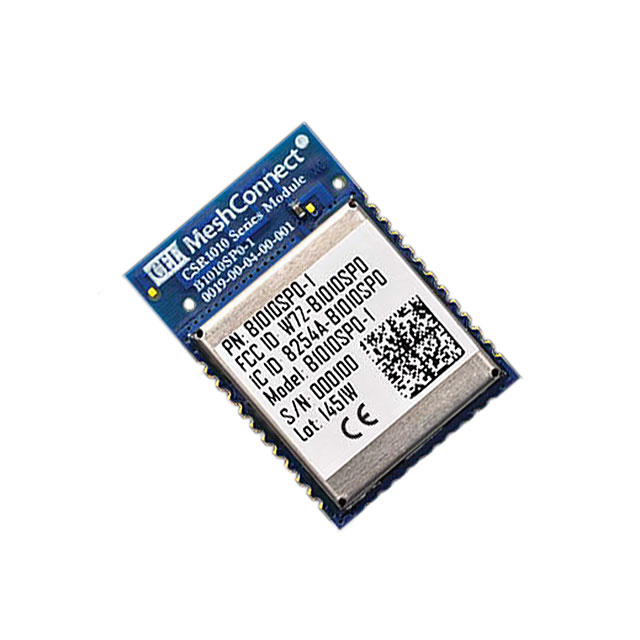

B1010SP0-2-R

Active

CEL

RF TXRX MOD BT TH SMD

Search across all available documentation for this part.

Active

CEL

RF TXRX MOD BT TH SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	B1010SP0-2-R	B1010SP0 Series

Antenna Type	Integrated, Trace	Integrated, Trace, Antenna Not Included
Contents	-	Cable(s), Board(s)
Current - Receiving	39 mA	39 mA
Current - Receiving	-	24 mA
Current - Receiving	-	17 mA
Current - Transmitting	54 mA	54 mA
Current - Transmitting	-	54 mA
Current - Transmitting	-	17 mA
For Use With/Related Products	-	B1010SP0
Frequency	2.4 GHz	2.4 GHz
Memory Size	1 MB	1 MB
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Package / Case	Module	Module
Power - Output	8 dBm	8 dBm
Protocol	Bluetooth v4.0	Bluetooth v4.0
RF Family/Standard	Bluetooth	Bluetooth
Sensitivity	-94 dBm	-94 dBm
Serial Interfaces	UART, I2C, SPI	UART, I2C, SPI
Supplied Contents	-	Cable(s), Board(s)
Type	-	Transceiver; Bluetooth® Smart 4.x Low Energy (BLE)
Utilized IC / Part	EM357	EM357, B1010SP0
Voltage - Supply [Max]	3.6 V	3.6 V
Voltage - Supply [Min]	1.8 V	1.8 V

RF TXRX MOD BT TH SMD

Part	Frequency	Package / Case	Utilized IC / Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Antenna Type	Power - Output	Current - Transmitting	Current - Receiving	Sensitivity	RF Family/Standard	Serial Interfaces	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Memory Size	Protocol	For Use With/Related Products	Supplied Contents	Contents	Type	Current - Transmitting [Max]	Current - Transmitting [Min]	Current - Receiving [Max]	Current - Receiving [Min]
CEL B1010SP0-2-R	2.4 GHz	Module	EM357	3.6 V	1.8 V	Integrated, Trace	8 dBm	54 mA	39 mA	-94 dBm	Bluetooth	I2C, SPI, UART	Surface Mount	-30 ░C	85 °C	1 MB	Bluetooth v4.0
CEL B1010SP0-EVB-2	2.4 GHz		B1010SP0															B1010SP0	Board(s), Cable(s)	Board(s), Cable(s)	Transceiver; Bluetooth® Smart 4.x Low Energy (BLE)
CEL B1010SP0-EVB-1	2.4 GHz																	B1010SP0	Board(s), Cable(s)		Transceiver; Bluetooth® Smart 4.x Low Energy (BLE)
CEL B1010SP0-1C-R	2.4 GHz	Module	EM357	3.6 V	1.8 V	Antenna Not Included	8 dBm			-94 dBm	Bluetooth	I2C, SPI, UART	Surface Mount	-30 ░C	85 °C		Bluetooth v4.0					54 mA	17 mA	24 mA	17 mA
CEL B1010SP0-1-R	2.4 GHz	Module	EM357	3.6 V	1.8 V	Integrated, Trace	8 dBm			-94 dBm	Bluetooth	I2C, SPI, UART	Surface Mount	-30 ░C	85 °C		Bluetooth v4.0					54 mA	17 mA	24 mA	17 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bluetooth Bluetooth v4.0 Transceiver Module 2.4GHz Integrated, Trace Surface Mount
