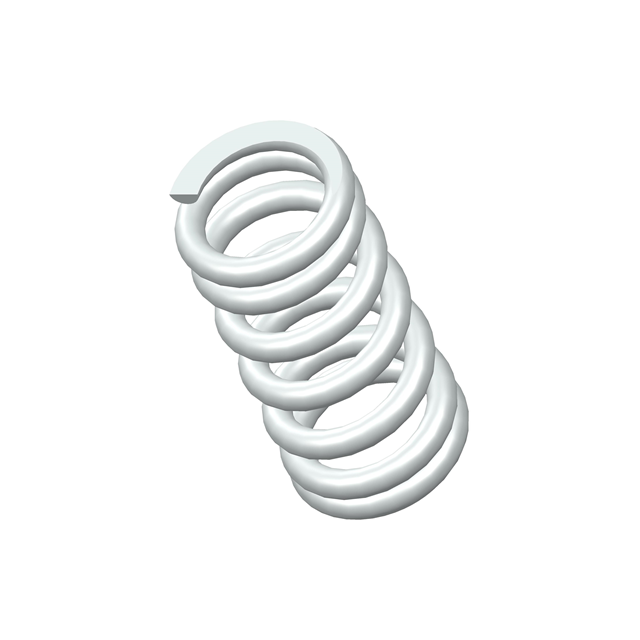

70703SCS
ActiveCentury Spring Corp
COMP O= .240,L= .50,W= .038
70703SCS
ActiveCentury Spring Corp
COMP O= .240,L= .50,W= .038
Description
General part information
70703SCS
COMP O= .240,L= .50,W= .038
Technical Specifications
Parameters and characteristics for this part
| Specification | 70703SCS |
|---|---|
| Diameter - Inside | 0.164 in |
| Diameter - Outside | 0.24 in |
| End Style | Ground, Closed |
| Finish | None |
| Free Length | 0.5 in |
| Material | Stainless Steel |
| Rate (lbs/in) | 61 lbs/in |
| Type | Compression |
| Wire Diameter | 0.038 in |
