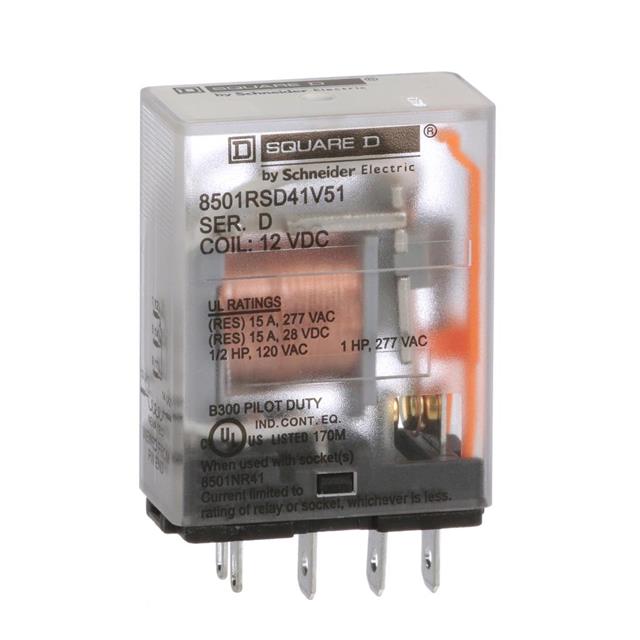

8501RSD41V51
ActiveSQUARE D BY SCHNEIDER ELECTRIC
PLUG IN RELAY, TYPE R, MINIATURE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 8501RSD41V51 |
|---|---|
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver (Ag), Gold (Au) |
| Contact Rating (Current) | 15 A |
| Load - Max Switching | 4500 VA, 450 W |
| Mounting Type | Socketable |
| Operate Time | 20 ms |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 20 ms |
| Switching Voltage [Max] | 300 VAC, 30 VDC |
| Termination Style | Plug In |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 51.01 | |
Description
General part information
8501RSD41V51
General Purpose Relay SPDT (1 Form C) 12VDC Coil Socketable
