5-796985-1
ActiveTE Connectivity AMP Connectors

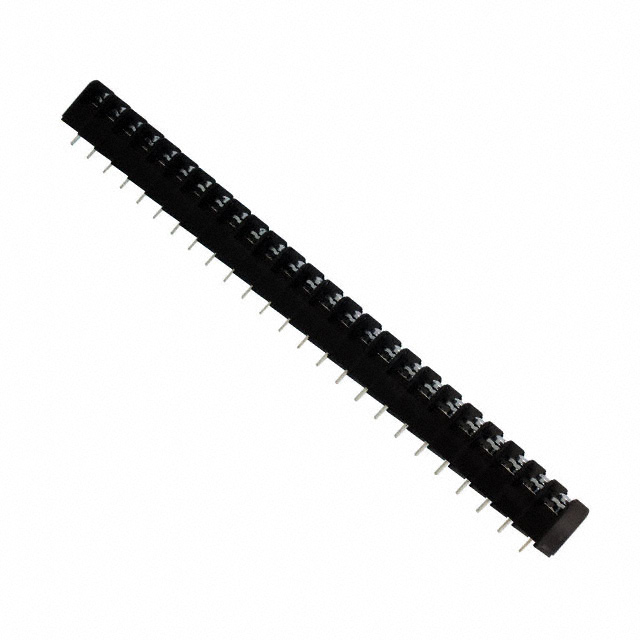

CONN BARRIER STRP 25CIRC 0.375"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5-796985-1
ActiveTE Connectivity AMP Connectors
CONN BARRIER STRP 25CIRC 0.375"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 5-796985-1 | 796985 Series |
|---|---|---|
| Barrier Type | 2 Wall (Dual) | 2 Wall (Dual) |
| Bottom Termination | PC Pin | Wire Wrap, Solder Turret, Quick Connect, Insulated, PC Pin |
| Bottom Termination | - | 0.25 " |
| Color | Black | Black |
| Current Rating (Amps) | 20 A | 20 A |
| Features | - | Flange |
| Material - Insulation | Thermoplastic | Thermoplastic |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole, Panel, Chassis, Chassis, Panel |
| Number of Circuits | 25 | 3 - 25 |
| Number of Rows | 1 | 1 |
| Number of Wire Entries | 25 | 3 - 25 |
| Operating Temperature | 105 C | 105 C |
| Pitch [x] | 9.53 mm | 9.53 mm |
| Pitch [x] | 0.375 in | 0.375 in |
| Terminal Block Type | Barrier Block | Barrier Block |
| Terminal Screw Finish | Zinc, Clear Chromate | Zinc, Clear Chromate |
| Terminal Screw Material | Steel | Steel |
| Top Termination | Screws with Captive Plate | Screws with Captive Plate, Screws |
| Voltage Rating | 300 VDC | 300 VDC |
| Wire Gauge [Max] | 22 AWG | 22 AWG |
| Wire Gauge [Min] | 12 AWG | 12 AWG |
796985 Series
CONN BARRIER STRP 12CIRC 0.375"
| Part | Bottom Termination | Top Termination | Number of Rows | Voltage Rating | Terminal Screw Material | Material Flammability Rating | Number of Circuits | Mounting Type | Current Rating (Amps) | Number of Wire Entries | Terminal Screw Finish | Color | Operating Temperature | Wire Gauge [Min] | Wire Gauge [Max] | Pitch [x] | Pitch [x] | Terminal Block Type | Barrier Type | Material - Insulation | Features | Bottom Termination [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 2-796985-9 | Wire Wrap | Screws with Captive Plate | 1 | 300 VDC | Steel | UL94 V-0 | 12 | Through Hole | 20 A | 12 | Clear Chromate, Zinc | Black | 105 C | 12 AWG | 22 AWG | 9.53 mm | 0.375 in | Barrier Block | 2 Wall (Dual) | Thermoplastic | ||
TE Connectivity AMP Connectors 796985-2 | Solder Turret | Screws | 1 | 300 VDC | Steel | UL94 V-0 | 6 | Chassis, Panel | 20 A | 6 | Clear Chromate, Zinc | Black | 105 C | 12 AWG | 22 AWG | 9.53 mm | 0.375 in | Barrier Block | 2 Wall (Dual) | Thermoplastic | Flange | |
TE Connectivity AMP Connectors 796985-9 | Insulated, Quick Connect | Screws with Captive Plate | 1 | 300 VDC | Steel | UL94 V-0 | 12 | Chassis, Panel | 20 A | 12 | Clear Chromate, Zinc | Black | 105 C | 12 AWG | 22 AWG | 9.53 mm | 0.375 in | Barrier Block | 2 Wall (Dual) | Thermoplastic | Flange | 0.25 " |
TE Connectivity AMP Connectors 796985-1 | Solder Turret | Screws with Captive Plate | 1 | 300 VDC | Steel | UL94 V-0 | 3 | Chassis, Panel | 20 A | 3 | Clear Chromate, Zinc | Black | 105 C | 12 AWG | 22 AWG | 9.53 mm | 0.375 in | Barrier Block | 2 Wall (Dual) | Thermoplastic | Flange | |
TE Connectivity AMP Connectors 9-796985-0 | PC Pin | Screws | 1 | 300 VDC | Steel | UL94 V-0 | 4 | Chassis, Panel, Through Hole | 20 A | 4 | Clear Chromate, Zinc | Black | 105 C | 12 AWG | 22 AWG | 9.53 mm | 0.375 in | Barrier Block | 2 Wall (Dual) | Thermoplastic | Flange | |
TE Connectivity AMP Connectors 796985-6 | Insulated, Quick Connect | Screws with Captive Plate | 1 | 300 VDC | Steel | UL94 V-0 | 10 | Chassis, Panel | 20 A | 10 | Clear Chromate, Zinc | Black | 105 C | 12 AWG | 22 AWG | 9.53 mm | 0.375 in | Barrier Block | 2 Wall (Dual) | Thermoplastic | Flange | 0.25 " |
TE Connectivity AMP Connectors 5-796985-6 | PC Pin | Screws with Captive Plate | 1 | 300 VDC | Steel | UL94 V-0 | 12 | Chassis, Panel, Through Hole | 20 A | 12 | Clear Chromate, Zinc | Black | 105 C | 12 AWG | 22 AWG | 9.53 mm | 0.375 in | Barrier Block | 2 Wall (Dual) | Thermoplastic | Flange | |
TE Connectivity AMP Connectors 4-796985-2 | PC Pin | Screws with Captive Plate | 1 | 300 VDC | Steel | UL94 V-0 | 7 | Through Hole | 20 A | 7 | Clear Chromate, Zinc | Black | 105 C | 12 AWG | 22 AWG | 9.53 mm | 0.375 in | Barrier Block | 2 Wall (Dual) | Thermoplastic | ||
TE Connectivity AMP Connectors 796985-8 | PC Pin | Screws | 1 | 300 VDC | Steel | UL94 V-0 | 4 | Through Hole | 20 A | 4 | Clear Chromate, Zinc | Black | 105 C | 12 AWG | 22 AWG | 9.53 mm | 0.375 in | Barrier Block | 2 Wall (Dual) | Thermoplastic | ||
TE Connectivity AMP Connectors 5-796985-4 | PC Pin | Screws with Captive Plate | 1 | 300 VDC | Steel | UL94 V-0 | 10 | Chassis, Panel, Through Hole | 20 A | 10 | Clear Chromate, Zinc | Black | 105 C | 12 AWG | 22 AWG | 9.53 mm | 0.375 in | Barrier Block | 2 Wall (Dual) | Thermoplastic | Flange |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1050 | $ 18.73 | |
Description
General part information
796985 Series
25 Circuit 0.375" (9.53mm) Barrier Block Connector Screws with Captive Plate
