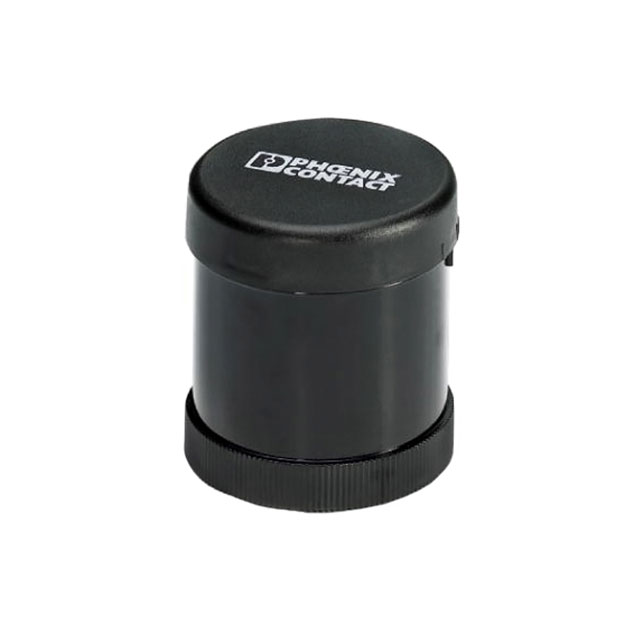

Specification	2700136

Function - Audible	Continuous, Pulse
Ingress Protection Description	Dust Tight, Water Resistant
Ingress Protection IP Rating	IP65
Number of Stacks	1
Operating Temperature (Max)	50 °C
Operating Temperature (Min)	-30 °C
Type	Acoustic Element
Voltage - Supply	24 VDC
Voltage - Supply (Option 1)	24 VAC
Voltage - Supply (Option 2)	24 DC
Weight	0.161 lb

27001 Series

Part	Weight	Operating Temperature (Max)	Operating Temperature (Min)	Type	Features	Ingress Protection IP Rating	Ingress Protection Description	Voltage - Supply (Option 1)	Voltage - Supply	Voltage - Supply (Option 2)	Function - Lighting	Number of Stacks	Lamp Type	Light Color	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)
Phoenix Contact 2700160	0.177 lb	60 °C	-20 °C	Mounting Bracket
Phoenix Contact 2700163	0.093 lb	60 °C	-20 °C	Mounting Base
Phoenix Contact 2700144	0.089 lb	50 °C	-20 °C	Mounting Bracket
Phoenix Contact 2700155	0.671 lb	60 °C	-30 °C	Outlet Box	Magnetic Base
Phoenix Contact 2700121	0.13 lbs	50 °C	-20 °C	Optical Element		IP65	Dust Tight Water Resistant	24 VAC	24 VDC	24 DC	Flashing	1	LED	Green
Phoenix Contact 2700125	0.144 lb	50 °C	-20 °C	Optical Element		IP65	Dust Tight Water Resistant	24 VAC	24 VDC	24 DC	Rotating	1	LED	Yellow
Phoenix Contact 2700100	0.122 lb	60 °C	-20 °C	Optical Element		IP65	Dust Tight Water Resistant				Steady	1	Not Included	Blue	240 VAC	12 VDC
Phoenix Contact 2700127	0.128 lb	50 °C	-20 °C	Optical Element		IP65	Dust Tight Water Resistant	24 VAC	24 VDC	24 DC	Steady	1	LED	Clear
Phoenix Contact 2700164	0.725 lb			Mounting Base
Phoenix Contact 2700142	0.003 lb	60 °C	-30 °C	Bulb					24 VDC				Incandescent
