Technical Specifications
Parameters and characteristics for this part
| Specification | MAL210176224E3 |
|---|---|
| Applications | General Purpose |
| Capacitance | 220000 µF |
| ESR (Equivalent Series Resistance) | 6 mOhm |
| Height - Seated (Max) | 4.358 in |
| Impedance | 5 mOhms |
| Lead Spacing | 1.122 in |
| Lifetime | 15000 Hrs |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can - Screw Terminals, Radial |
| Polarization | Polar |
| Ripple Current | 20.2 A |
| Size / Dimension Diameter | 2.559 in |
| Tolerance | 20 % |
| Voltage - Rated | 25 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
CAD
3D models and CAD resources for this part
Description
General part information

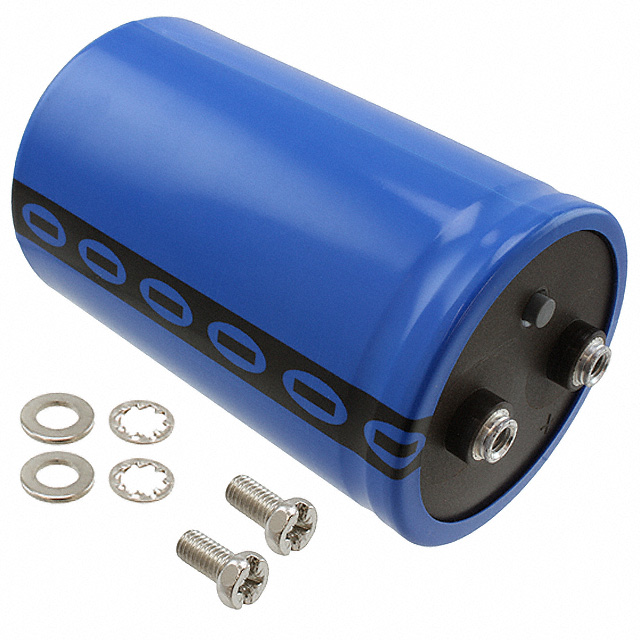

MAL210176224E3
220000 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 6mOhm @ 100Hz 15000 Hrs @ 85°C
