130568

Active

TE Connectivity AMP Connectors

CONN SPADE TERM 14-16AWG #1/4

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

130568

Active

TE Connectivity AMP Connectors

CONN SPADE TERM 14-16AWG #1/4

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	130568	1305 Series

Color	Blue	Blue, White
Contact Finish	Tin	Tin
Contact Material	Copper	Copper
Features	Serrated Termination	Brazed Seam, Serrated Termination
Insulation	Insulated	Non-Insulated, Insulated
Insulation Diameter [Max]	4.9 mm	4.9 mm
Insulation Diameter [Max]	0.193 in	0.193 in
Insulation Diameter [Min]	3 mm	3 mm
Insulation Diameter [Min]	0.118 in	0.118 in
Length - Overall	-	0.554 - 0.938 in
Length - Overall	-	14.07 - 23.83 mm
Length - Overall [x]	26.9 mm	20.4 - 29.7 mm
Length - Overall [x]	1.059 "	0.803 - 1.169 "
Length - Ring Center to Termination [x]	0.437 "	0.25 - 0.437 "
Length - Ring Center to Termination [x]	11.1 mm	6.35 - 11.1 mm
Length - Termination	-	0.179 "
Length - Termination	-	4.55 mm
Length - Termination [x]	9.8 mm	9.8 mm
Length - Termination [x]	0.386 "	0.386 "
Material - Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Stud/Tab Size	0.25 Stud	0.25 - 4 Stud
Stud/Tab Size	-	M5 Stud
Terminal Type	Standard	Circular, Standard, Flat Sided
Termination	Crimp	Crimp
Thickness	-	0.031 - 0.057 in
Thickness	-	0.79 - 1.45 mm
Tongue Inside Opening [x]	0.25 in	0.119 - 0.25 in
Tongue Inside Opening [x]	6.35 mm	3.02 - 6.35 mm
Width - Outer Edges	-	5.54 mm
Width - Outer Edges	-	0.218 in
Width - Outer Edges	-	5.59 mm
Width - Outer Edges	-	0.22 in
Width - Outer Edges [y]	0.472 in	0.468 - 0.472 in
Width - Outer Edges [y]	12 mm	11.89 - 12 mm
Wire Gauge	-	6 - 8 AWG
Wire Gauge	-	22 AWG
Wire Gauge	-	16 AWG

1305 Series

CONN RING CIRC 8AWG #1/4 CRIMP

Part	Features	Width - Outer Edges [y]	Width - Outer Edges [y]	Wire Gauge	Length - Overall	Length - Overall	Contact Finish	Insulation	Termination	Thickness	Thickness	Stud/Tab Size	Terminal Type	Contact Material	Mounting Type	Length - Overall [x]	Length - Overall [x]	Stud/Tab Size	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Min]	Color	Length - Termination [x]	Length - Termination [x]	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Material - Insulation	Wire Gauge [Max]	Wire Gauge [Min]	Length - Termination	Length - Termination	Width - Outer Edges [x]	Width - Outer Edges [x]	Width - Outer Edges	Width - Outer Edges
TE Connectivity AMP Connectors 130550	Brazed Seam, Serrated Termination	0.468 in	11.89 mm	8 AWG	0.938 in	23.83 mm	Tin	Non-Insulated	Crimp	0.048 in	1.22 mm	0.25 Stud	Circular	Copper	Free Hanging (In-Line)
TE Connectivity AMP Connectors 130552	Brazed Seam, Serrated Termination	0.469 in	11.91 mm	6 AWG			Tin	Non-Insulated	Crimp	0.057 in	1.45 mm		Circular	Copper	Free Hanging (In-Line)	29.7 mm	1.169 "	M5 Stud
TE Connectivity AMP Connectors 130568	Serrated Termination	0.472 in	12 mm				Tin	Insulated	Crimp			0.25 Stud	Standard	Copper	Free Hanging (In-Line)	26.9 mm	1.059 "		0.437 "	11.1 mm	4.9 mm	3 mm	0.193 in	0.118 in	Blue	9.8 mm	0.386 "	0.25 in	6.35 mm	Poly-Vinyl Chloride (PVC)
TE Connectivity AMP Connectors 130524	Brazed Seam, Serrated Termination				0.554 "	14.07 mm	Tin	Non-Insulated	Crimp			4 Stud	Standard	Copper	Free Hanging (In-Line)				0.25 in	6.35 mm								0.119 in	3.02 mm		22 AWG	16 AWG	0.179 "	4.55 mm	5.54 mm	0.218 in
TE Connectivity AMP Connectors 130565	Serrated Termination						Tin	Insulated	Crimp	0.031 in	0.79 mm		Flat Sided	Copper	Free Hanging (In-Line)	20.4 mm	0.803 in								White												5.59 mm	0.22 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.48
		10	$ 0.45
		25	$ 0.45
		50	$ 0.44
		100	$ 0.38
		250	$ 0.34
		500	$ 0.32
		1000	$ 0.28
		3000	$ 0.28

Description

General part information

1305 Series

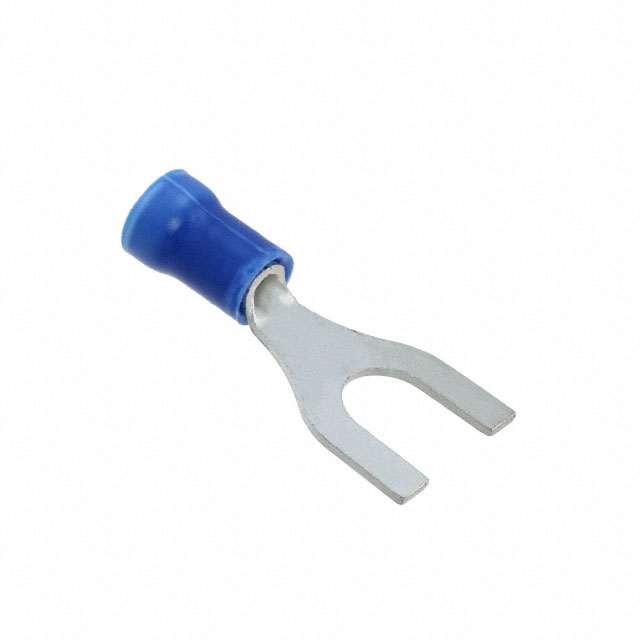

Blue 1/4 Stud Spade Terminal Connector Crimp 14-16 AWG

Documents

Technical documentation and resources
