FMCA2530-12
ActiveFairview Microwave
CBL ASSY 2.2-5JACK-TYPE NPLUG 12
FMCA2530-12
ActiveFairview Microwave
CBL ASSY 2.2-5JACK-TYPE NPLUG 12
Description
General part information
FMCA2530-12

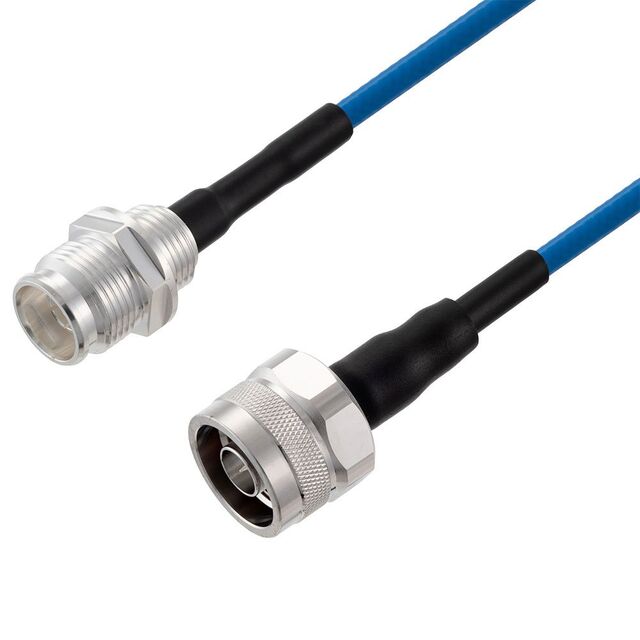

Cable Assembly Coaxial 2.2/5 to N-Type TFT-402LF 12.00" (304.80mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA2530-12 |
|---|---|
| 1st Connector | 2.2/5 Jack |
| 1st Connector - Type | Jack |
| 1st Connector Dimension (1) | 2.2 mm |
| 1st Connector Dimension (2) | 5 mm |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | N-Type Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | 402LF, TFT |
| Color | Blue |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 5.8 GHz |
| Length | 12 in |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | 2.2/5 to N-Type |
