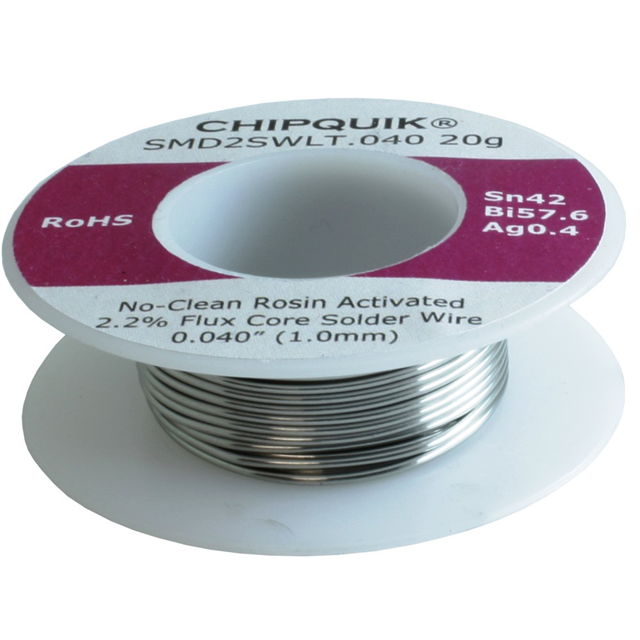

SMD2SWLT.040 20G

Active

Chip Quik Inc.

SN42/BI57.6/AG0.4 2.2% FLUX CORE

Search across all available documentation for this part.

Active

Chip Quik Inc.

SN42/BI57.6/AG0.4 2.2% FLUX CORE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 34.15

General part information

Lead Free No-Clean, Rosin Activated (RA) Wire Solder Bi57.6Sn42Ag0.4 (57.6/42/0.4) Spool, 0.7 oz (20g)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	SMD2SWLT.040 20G	SMD2S Series

Composition	Bi57.6Sn42Ag0.4 (57.6/42/0.4)	Bi57.6Sn42Ag0.4 (57.6/42/0.4), Sn99.3Cu0.7 (99.3/0.7)
Diameter [diameter]	1.02 mm	1.02 - 1.19 mm
Diameter [diameter]	0.04 in	0.04 - 0.047 in
Flux Type	No-Clean, Rosin Activated (RA)	No-Clean, Rosin Activated (RA), Water Soluble, No-Clean
Form	Spool	Spool
Form	20 g	0.35 - 227 g
Form	0.7 oz	0.5 - 8 oz
Form	-	10 g
Melting Point [custom]	138 °C	138 - 227 °C
Melting Point [custom]	280 °F	280 - 441 °F
Type	Wire Solder	Wire Solder
Wire Gauge	-	20 AWG, 22 SWG

SOLDER WIRE SN42/BI57.6/AG0.4 .0

Part	Form	Form	Form	Diameter [diameter]	Diameter [diameter]	Melting Point [custom]	Melting Point [custom]	Composition	Type	Flux Type	Form	Wire Gauge
Chip Quik Inc. SMD2SWLT.047 8OZ	Spool	0.5 lb, 8 oz	227 g	1.19 mm	0.047 in	138 °C	280 °F	Bi57.6Sn42Ag0.4 (57.6/42/0.4)	Wire Solder
Chip Quik Inc. SMD2SWLT.040 20G	Spool	0.7 oz	20 g	1.02 mm	0.04 in	138 °C	280 °F	Bi57.6Sn42Ag0.4 (57.6/42/0.4)	Wire Solder	No-Clean, Rosin Activated (RA)
Chip Quik Inc. SMD2SWLT.040 100G	Spool	3.53 oz	100 g	1.02 mm	0.04 in	138 °C	280 °F	Bi57.6Sn42Ag0.4 (57.6/42/0.4)	Wire Solder	No-Clean, Rosin Activated (RA)
Chip Quik Inc. SMD2SWLT.040 10G	Spool		0.35 oz	1.02 mm	0.04 in	138 °C	280 °F	Bi57.6Sn42Ag0.4 (57.6/42/0.4)	Wire Solder	No-Clean, Rosin Activated (RA)	10 g
Chip Quik Inc. SMD2SWLF.031 8OZ	Spool	0.5 lb, 8 oz	227 g			227 °C	441 °F	Sn99.3Cu0.7 (99.3/0.7)	Wire Solder	No-Clean, Water Soluble		20 AWG, 22 SWG
Chip Quik Inc. SMD2SWLT.047 4OZ	Spool	4 oz	113.4 g	1.19 mm	0.047 in	138 °C	280 °F	Bi57.6Sn42Ag0.4 (57.6/42/0.4)	Wire Solder
Chip Quik Inc. SMD2SWLF.031 2OZ	Spool	2 oz	56.7 g			227 °C	441 °F	Sn99.3Cu0.7 (99.3/0.7)	Wire Solder	No-Clean, Water Soluble
