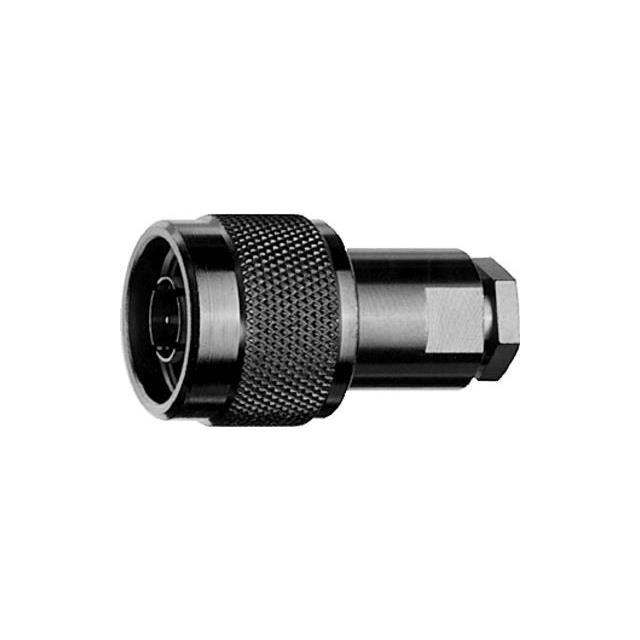

Specification	100023976

Body Finish	Tri-Metal
Body Material	Brass
Cable Group	LMR-195, RG-58
Center Contact Material	Brass
Center Contact Plating	Silver
Connector Style	N Type
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded
Frequency - Max	11 GHz
Housing Color	Silver
Impedance	50 Ohm
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Mating Cycles	500 cycles
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature (Max)	155 °C
Operating Temperature (Min)	-55 °C
Shield Termination	Clamp
Voltage Rating	1000 V
