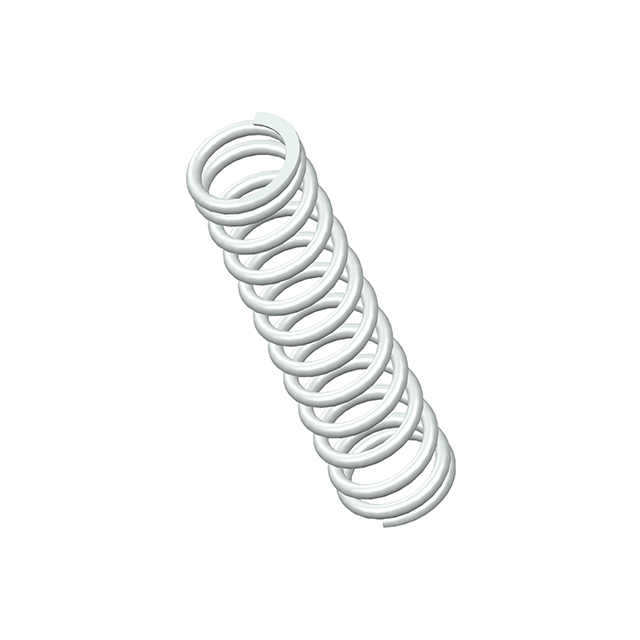

71168SCS
ActiveCentury Spring Corp
COMP O= .360,L= 1.50,W= .045
71168SCS
ActiveCentury Spring Corp
COMP O= .360,L= 1.50,W= .045
Description
General part information
71168SCS
COMP O= .360,L= 1.50,W= .045
Technical Specifications
Parameters and characteristics for this part
| Specification | 71168SCS |
|---|---|
| Diameter - Inside | 0.27 in |
| Diameter - Outside | 0.36 in |
| End Style | Ground, Closed |
| Finish | None |
| Free Length | 1.5 in |
| Material | Stainless Steel |
| Rate (lbs/in) | 15 lbs/in |
| Type | Compression |
| Wire Diameter | 0.045 in |
