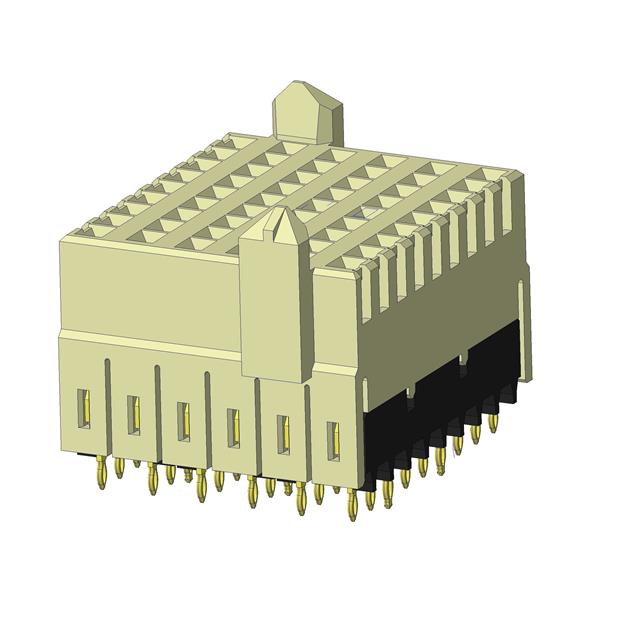

10130665-102LF

Active

Amphenol ICC (FCI)

3PVR 6COL 2MM SPF GXT+

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

3PVR 6COL 2MM SPF GXT+

Technical Specifications

Parameters and characteristics for this part

Specification	10130665-102LF

Color	Natural
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Current Rating (Amps)	500 mA
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Columns	6
Number of Positions	54
Number of Positions Loaded	All
Number of Rows	9
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Termination	Press-Fit
Voltage Rating	30 VAC

Part	Current Rating (Amps)	Connector Type	Number of Positions	Voltage Rating	Number of Columns	Pitch [x]	Pitch [x]	Mounting Type	Material Flammability Rating	Number of Positions Loaded	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Number of Rows	Termination	Color
Amphenol ICC (FCI) 10130665-102LF	500 mA	Receptacle Female Sockets	54	30 VAC	6	0.079 in	2 mm	Through Hole	UL94 V-0	All	85 °C	-55 °C	Gold	9	Press-Fit	Natural

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

54 Connector Receptacle, Female Sockets Through Hole Natural
