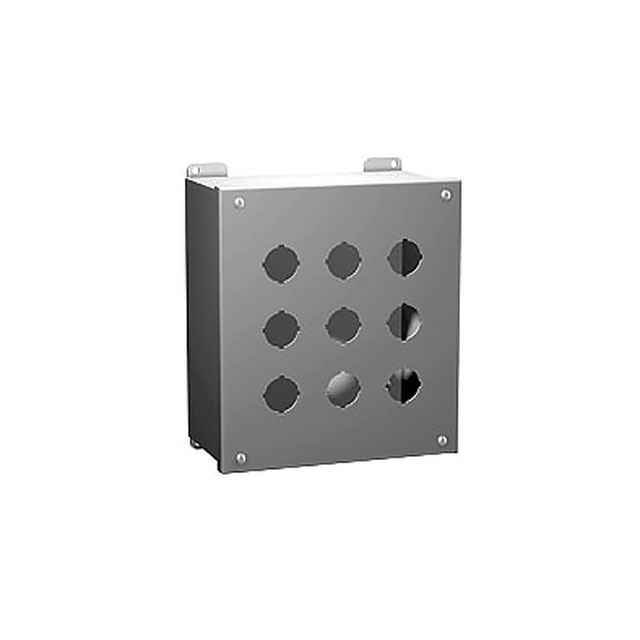

1437H
ActiveHammond Manufacturing
BOX STEEL GRAY 9.5"L X 6.25"W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsEnclosure Overview
1437H
ActiveHammond Manufacturing
BOX STEEL GRAY 9.5"L X 6.25"W
Deep-Dive with AI
DocumentsEnclosure Overview
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1437H | 1437 Series |
|---|---|---|
| Area (L x W) | 59.4 in² | 16 - 182 in² |
| Area (L x W) | 383 cm² | 103 - 1174 cm² |
| Area (L x W) | - | 155 cm² |
| Area (L x W) | - | 24 in² |
| Color | Gray | Gray, Natural |
| Container Type | Box | Box |
| Design | Hinged Door, Lid | Hinged Door, Lid, Cover Included |
| Features | 6 Fibers | 2 - 25 pcs per Pkg |
| Features | - | 9 |
| Features | - | Pushbutton Holes - 1 |
| Height [z] | 120.65 mm | 120.65 mm |
| Height [z] | 4.75 in | 4.75 in |
| Material | Metal, Steel | Metal, Steel |
| Ratings | UL-508, NEMA 13, IP54, JIC EGP-1-1967, NEMA 12 | UL-508, NEMA 13, IP54, JIC EGP-1-1967, NEMA 12, IP66, NEMA 4X, NEMA 4 |
| Size / Dimension | - | 101.6 mm |
| Size / Dimension [x] | 9.5 " | 4 - 14 " |
| Size / Dimension [x] | 241.3 mm | 101.6 - 355.6 mm |
| Size / Dimension [y] | 6.25 " | 4 - 10.75 " |
| Size / Dimension [y] | 158.75 mm | 101.6 - 273.05 mm |
| Thickness | 14 Gauge | 14 - 16 Gauge |
| Weight | 2.3 kg | 1.4 - 5.4 kg |
| Weight | 5 lbs | 3.1 - 12 lbs |
1437 Series
BOX STEEL GRAY 9.5"L X 8.5"W
| Part | Ratings | Material | Thickness | Color | Weight | Weight | Container Type | Height [z] | Height [z] | Features [custom] | Area (L x W) | Area (L x W) | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Design | Size / Dimension [y] | Area (L x W) [custom] | Area (L x W) [custom] | Features | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Hammond Manufacturing 1437MK | IP54, JIC EGP-1-1967, NEMA 12, NEMA 13, UL-508 | Metal, Steel | 14 Gauge | Gray | 3.2 kg | 7 lbs | Box | 120.65 mm | 4.75 in | 9 | 80.8 in² | 521 cm² | 8.5 " | 215.9 mm | 9.5 " | 241.3 mm | Hinged Door, Lid | |||||
Hammond Manufacturing 1437B | IP54, JIC EGP-1-1967, NEMA 12, NEMA 13, UL-508 | Metal, Steel | 14 Gauge | Gray | 1.8 kg | 4 lbs | Box | 120.65 mm | 4.75 in | 4 " | 6 in | 152.4 mm | Hinged Door, Lid | 101.6 mm | 155 cm² | 24 in² | 2 pcs per Pkg | |||||
Hammond Manufacturing 1437MX | IP54, JIC EGP-1-1967, NEMA 12, NEMA 13, UL-508 | Metal, Steel | 14 Gauge | Gray | 5.4 kg | 12 lbs | Box | 120.65 mm | 4.75 in | 182 in² | 1174 cm² | Hinged Door, Lid | 25 | |||||||||
Hammond Manufacturing 1437SSB | IP66, JIC EGP-1-1967, NEMA 4, NEMA 4X, UL-508 | 14 Gauge | Natural | 1.8 kg | 4 lbs | Box | 120.65 mm | 4.75 in | 4 " | 6 in | 152.4 mm | Hinged Door, Lid | 101.6 mm | 155 cm² | 24 in² | 2 pcs per Pkg | ||||||
Hammond Manufacturing 1437MA | IP54, JIC EGP-1-1967, NEMA 12, NEMA 13, UL-508 | Metal, Steel | 16 Gauge | Gray | 1.4 kg | 3.1 lbs | Box | 120.65 mm | 4.75 in | 16 in˛ | 103 cm˛ | 4 " | 101.6 mm | 4 in | 101.6 mm | Cover Included | Pushbutton Holes - 1 | |||||
Hammond Manufacturing 1437V | IP54, JIC EGP-1-1967, NEMA 12, NEMA 13, UL-508 | Metal, Steel | 14 Gauge | Gray | 5 kg | 11 lbs | Box | 120.65 mm | 4.75 in | 151 in² | 974 cm² | 10.75 in | 273.05 mm | 14 in | 355.6 mm | Hinged Door, Lid | 20 Positions | |||||
Hammond Manufacturing 1437SSS | IP66, JIC EGP-1-1967, NEMA 4, NEMA 4X, UL-508 | 14 Gauge | Natural | 4.5 kg | 10 lbs | Box | 120.65 mm | 4.75 in | 126 in² | 813 cm² | 10.75 in | 273.05 mm | 11.75 in | 298.45 mm | Hinged Door, Lid | 16 Switches | ||||||
Hammond Manufacturing 1437S16D | IP66, JIC EGP-1-1967, NEMA 4, NEMA 4X, UL-508 | 14 Gauge | Natural | 2.3 kg | 5 lbs | Box | 120.65 mm | 4.75 in | 40 in² | 258 cm² | 4 " | 101.6 mm | 10 in | 254 mm | Hinged Door, Lid | 4 Cable Entries | ||||||
Hammond Manufacturing 1437H | IP54, JIC EGP-1-1967, NEMA 12, NEMA 13, UL-508 | Metal, Steel | 14 Gauge | Gray | 2.3 kg | 5 lbs | Box | 120.65 mm | 4.75 in | 59.4 in² | 383 cm² | 6.25 " | 158.75 mm | 9.5 " | 241.3 mm | Hinged Door, Lid | 6 Fibers | |||||
Hammond Manufacturing 1437C | IP54, JIC EGP-1-1967, NEMA 12, NEMA 13, UL-508 | Metal, Steel | 14 Gauge | Gray | 2.3 kg | 5 lbs | Box | 120.65 mm | 4.75 in | 32 in² | 206 cm² | 4 " | 101.6 mm | 8 " | 203.2 mm | Hinged Door, Lid |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 138.35 | |
Description
General part information
1437 Series
Box Metal, Steel Gray Hinged Door, Lid 9.500" L x 6.250" W (241.30mm x 158.75mm) X 4.750" (120.65mm)
