31-475.036

Active

EAO

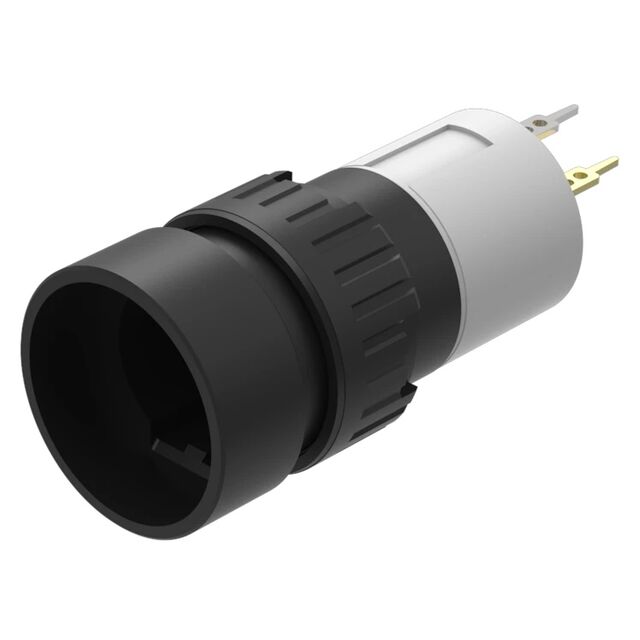

SWITCH PB SPST-NO 0.1A 42V

Search across all available documentation for this part.

Active

EAO

SWITCH PB SPST-NO 0.1A 42V

Technical Specifications

Parameters and characteristics for this part

Specification	31-475.036

Actuator Marking	No Marking
Actuator Type	Round, Button (Not Included)
Circuit	SPST-NO
Current Rating (Amps)	100 mA
Ingress Protection	IP40
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	Off-On
Termination Style	PC Pin, Solder Lug
Type	Standard
Voltage Rating - AC	42 V
Voltage Rating - DC	42 V

SWITCH PB SPST-NO 0.1A 42V

Part	Panel Cutout Dimensions [diameter]	Voltage Rating - AC	Voltage Rating - DC	Current Rating (Amps)	Type	Circuit	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Switch Function	Actuator Marking	Mounting Type	Mechanical Life	Termination Style
EAO 31-475.036	16 mm	42 V	42 V	100 mA	Standard	SPST-NO	IP40	55 °C	-25 °C	Round, Button (Not Included)	Off-On	No Marking	Panel Mount, Front	1000000 Cycles	PC Pin, Solder Lug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard Panel Mount, Front
