1-1123824-1
ActiveTE Connectivity AMP Connectors

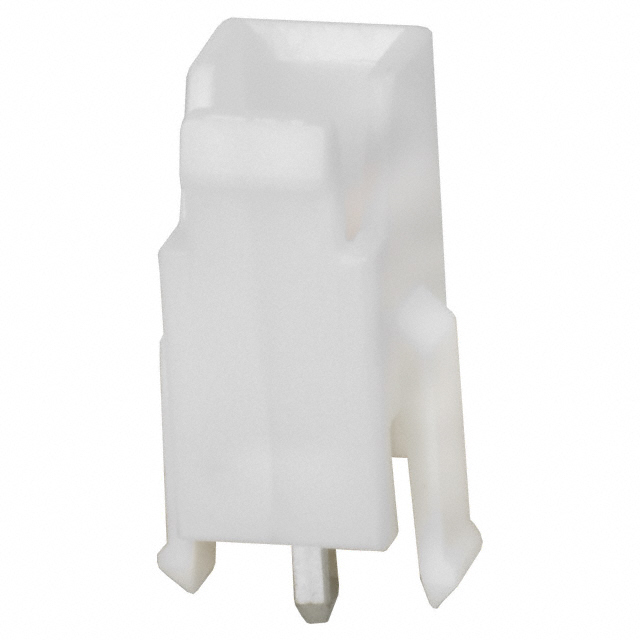

CONN HEADER VERT 1POS
Deep-Dive with AI
Search across all available documentation for this part.
1-1123824-1
ActiveTE Connectivity AMP Connectors
CONN HEADER VERT 1POS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-1123824-1 |
|---|---|
| Applications | General Purpose, Industrial, Lighting |
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.146 in |
| Contact Length - Post | 3.7 mm |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 7.5 A |
| Fastening Type | Locking Ramp |
| Insulation Color | Natural |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 1 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -25 °C |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.28 | |
| 10 | $ 0.24 | |||
| 100 | $ 0.22 | |||
| 500 | $ 0.17 | |||
| 1000 | $ 0.16 | |||
| 5000 | $ 0.14 | |||
| 10000 | $ 0.12 | |||
1123824 Series
CONN HEADER VERT 1POS
| Part | Style | Contact Length - Post | Contact Length - Post | Voltage Rating | Insulation Color | Contact Material | Material Flammability Rating | Contact Type | Contact Shape | Number of Positions Loaded | Shrouding | Fastening Type | Contact Finish - Post | Connector Type | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Number of Positions | Mounting Type | Applications | Insulation Material | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-1123824-1 | Board to Cable/Wire | 0.146 in | 3.7 mm | 250 VAC | Natural | Brass | UL94 V-0 | Male Pin | Square | All | Shrouded - 4 Wall | Locking Ramp | Tin | Header | 1 | -25 °C | 105 ░C | Solder | 1 | Through Hole | General Purpose, Industrial, Lighting | Polybutylene Terephthalate (PBT) | 7.5 A |
Description
General part information
1123824 Series
Connector Header Through Hole 1 position
