4282-1-0200-18-SP
ActiveCnC Tech, LLC

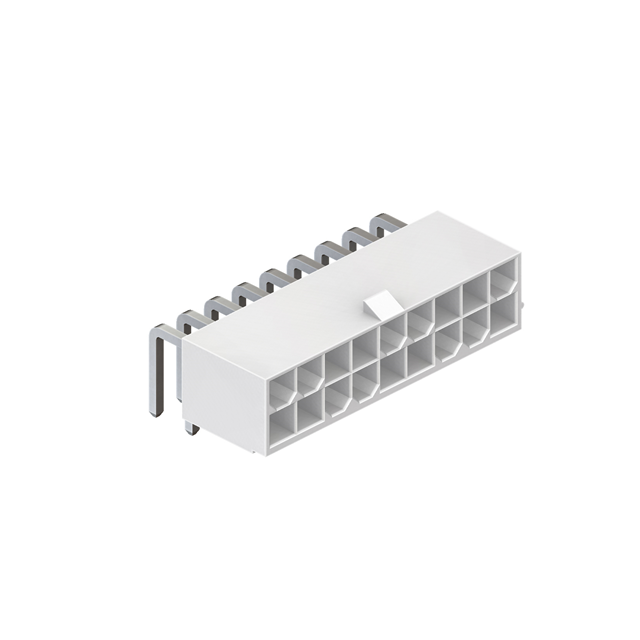

CONN HEADER R/A 18POS DUAL 94V-0
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
4282-1-0200-18-SP
ActiveCnC Tech, LLC
CONN HEADER R/A 18POS DUAL 94V-0
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 4282-1-0200-18-SP |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Length - Post | 3.5 mm |
| Contact Length - Post | 0.138 in |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 9 A |
| Fastening Type | Locking Ramp |
| Insulation Color | White |
| Insulation Height | 10 mm |
| Insulation Height | 0.394 " |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 18 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 4.2 mm |
| Pitch - Mating | 0.165 in |
| Row Spacing - Mating | 4.2 mm |
| Row Spacing - Mating | 0.165 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 600 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.01 | |
| 10 | $ 0.85 | |||
| 80 | $ 0.77 | |||
| 440 | $ 0.63 | |||
| 1152 | $ 0.61 | |||
Description
General part information
4282-1-0200-18-SP
Connector Header Through Hole, Right Angle 18 position 0.165" (4.20mm)
