B1565R

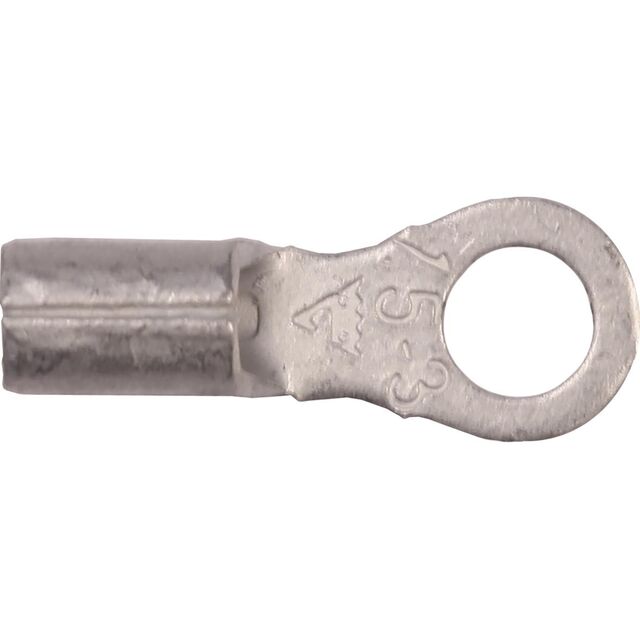

Ring Terminal Connector M6 Stud Circular 0.75 ~ 1.5mm² Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | B1565R |
|---|---|
| Contact Finish | Tin |
| Contact Material | Copper |
| Features | Brazed Seam |
| Insulation | Non-Insulated |
| Length - Overall | 0.846 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | M6 Stud, M6 |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.03 in |
| Width - Outer Edges | 0.433 in |
| Wire Gauge (Cross-Sectional Area) (Max) | 1.5 mm² |
| Wire Gauge (Cross-Sectional Area) (Min) | 0.75 mm² |
