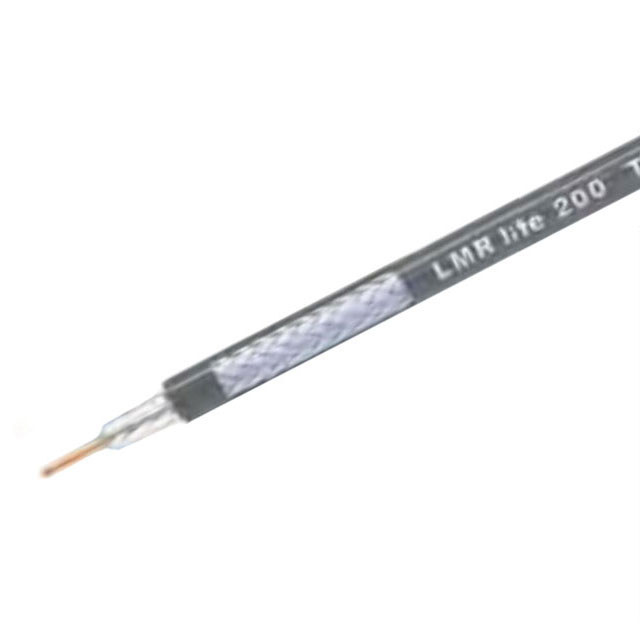

LMR-LW200

Active

Amphenol Times Microwave Systems

STANDARD CABLE, ALUMINUM BRAID,

Search across all available documentation for this part.

Active

Amphenol Times Microwave Systems

STANDARD CABLE, ALUMINUM BRAID,

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	LMR-LW200	LMR-LW2 Series

Cable Type	Coaxial	Coaxial
Conductor Material	Copper, Bare	Copper, Bare
Conductor Strand	Solid	Solid
Dielectric Diameter [diameter]	2.95 mm	2.95 - 3.81 mm
Dielectric Diameter [diameter]	0.116 in	0.116 - 0.15 in
Dielectric Material	Foam Polyethylene (FPE)	Foam Polyethylene (FPE)
Impedance	50 Ohms	50 Ohms
Jacket (Insulation) Diameter [diameter]	0.195 in	0.195 - 0.24 in
Jacket (Insulation) Diameter [diameter]	4.95 mm	4.95 - 6.1 mm
Jacket (Insulation) Material	Polyethylene (PE)	Polyethylene (PE)
Jacket Color	Black	Black
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Shield Material	Aluminum	Aluminum
Shield Type	Braid	Braid
VoP, Velocity of Propagation	83	83

STANDARD CABLE, ALUMINUM BRAID,

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	VoP, Velocity of Propagation	Impedance	Conductor Strand	Shield Material	Cable Type	Shield Type	Conductor Material	Operating Temperature [Max]	Operating Temperature [Min]	Jacket (Insulation) Material	Dielectric Material	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Jacket Color
Amphenol Times Microwave Systems LMR-LW200	0.195 in	4.95 mm	83	50 Ohms	Solid	Aluminum	Coaxial	Braid	Copper, Bare	85 °C	-40 °C	Polyethylene (PE)	Foam Polyethylene (FPE)	2.95 mm	0.116 in	Black
Amphenol Times Microwave Systems LMR-LW240	0.24 in	6.1 mm	83	50 Ohms	Solid	Aluminum	Coaxial	Braid	Copper, Bare	85 °C	-40 °C	Polyethylene (PE)	Foam Polyethylene (FPE)	3.81 mm	0.15 in	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	10000	$ 0.53

General part information

Coaxial Cable 50 Ohms
