SWH.2E.306.CLLP

Active

LEMO

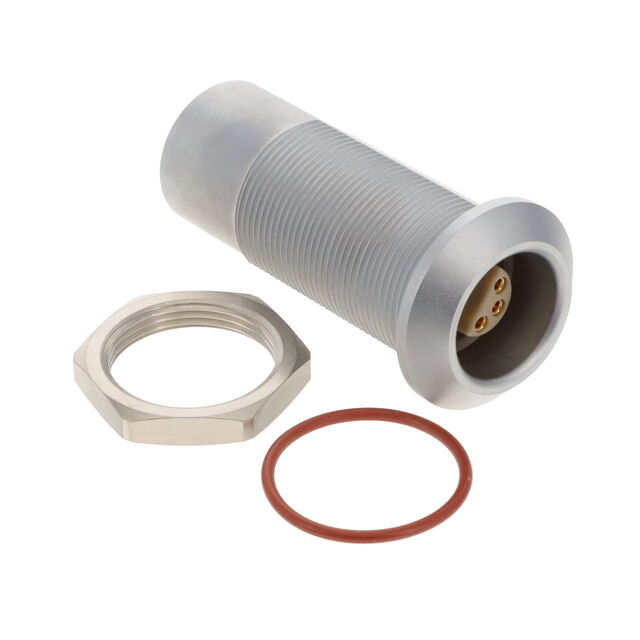

CONN ADPT 6P-6P F/M-F/M PNL MNT

Search across all available documentation for this part.

Active

LEMO

CONN ADPT 6P-6P F/M-F/M PNL MNT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 94.42

General part information

Circular Connector Standard 6/6 Female Sockets and Male Pins/Female Sockets and Male Pins Panel Mount

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	SWH.2E.306.CLLP	SWH.2E Series

Connector Style	Standard	Standard
Convert From (Adapter End)	Female Sockets and Male Pins	Female Sockets and Male Pins
Convert To (Adapter End)	Female Sockets, Male Pins	Female Sockets, Male Pins
Current Rating (Amps)	12 A	12 - 15 A
Fastening Type	Push-Pull	Push-Pull
Features	Mounting Hardware	Mounting Hardware, Vacuumtight
Housing Color	Silver	Silver
Housing Finish	Chrome	Chrome
Housing Material	Brass	Brass
Includes	1 Adapter, 1 Nut	1 Adapter, 1 Nut
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut
Number of Positions (Convert From)	6	3 - 6
Number of Positions (Convert To)	6	6
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-20 C	-20 C
Orientation (Convert From)	Keyed	Keyed
Orientation (Convert To)	Keyed	Keyed
Shell Size - Insert (Convert From)	306	303 - 306
Shell Size - Insert (Convert To)	-	303
Shell Size - Insert (Convert To) [custom]	306	306
Shielding	Shielded	Shielded

CONN ADPT 6P-6P F/M-F/M PNL MNT

Part	Shell Size - Insert (Convert From)	Housing Color	Features	Number of Positions (Convert To)	Includes	Connector Style	Fastening Type	Orientation (Convert From)	Shielding	Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]	Convert From (Adapter End)	Current Rating (Amps)	Housing Finish	Convert To (Adapter End)	Housing Material	Shell Size - Insert (Convert To) [custom]	Ingress Protection	Number of Positions (Convert From)	Orientation (Convert To)	Shell Size - Insert (Convert To) [custom]
LEMO SWH.2E.306.CLLPV	306	Silver	Mounting Hardware, Vacuumtight	6	1 Adapter, 1 Nut	Standard	Push-Pull	Keyed	Shielded	Bulkhead - Rear Side Nut	-20 C	80 C	Female Sockets and Male Pins	12 A	Chrome	Female Sockets, Male Pins	Brass	306	IP68 - Dust Tight, Waterproof	6	Keyed
LEMO SWH.2E.306.CLLP	306	Silver	Mounting Hardware	6	1 Adapter, 1 Nut	Standard	Push-Pull	Keyed	Shielded	Bulkhead - Rear Side Nut	-20 C	80 C	Female Sockets and Male Pins	12 A	Chrome	Female Sockets, Male Pins	Brass	306	IP68 - Dust Tight, Waterproof	6	Keyed
LEMO SWH.2E.303.CLMPV	303	Silver	Mounting Hardware, Vacuumtight		1 Adapter, 1 Nut	Standard	Push-Pull	Keyed	Shielded	Bulkhead - Rear Side Nut	-20 C	80 C	Female Sockets and Male Pins	15 A	Chrome	Female Sockets, Male Pins	Brass		IP68 - Dust Tight, Waterproof	3	Keyed	303
