A1CXB-3436G
ActiveTE Connectivity AMP Connectors
IDC CABLE- AKC34B/AE34G/X
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A1CXB-3436G
ActiveTE Connectivity AMP Connectors
IDC CABLE- AKC34B/AE34G/X
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A1CXB-3436G | A1CXB Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | - | Ribbon, Multiple |
| Connector Type | Socket to Cable | Socket to Cable |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Features | Polarizing Key | Polarizing Key |
| Length [x] | 3 ft | 3 ft |
| Length [x] | 914.4 mm | 914.4 mm |
| Number of Positions | 34 | 10 - 64 |
| Number of Positions | - | 16 |
| Number of Rows | 2 | 2 |
| Pitch - Cable | 0.05 " | 0.05 " |
| Pitch - Cable | 1.27 mm | 1.27 mm |
| Pitch - Connector | 0.1 in | 0.1 in |
| Pitch - Connector | 2.54 mm | 2.54 mm |
| Shielding | Unshielded | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.49 | |
| 10 | $ 7.87 | |||
| 25 | $ 7.30 | |||
| 50 | $ 6.90 | |||
| 100 | $ 6.52 | |||
| 250 | $ 6.05 | |||
| 500 | $ 5.72 | |||
| 1000 | $ 5.41 | |||
A1CXB Series
IDC CABLE- AKC40B/AE40M/X
| Part | Color | Pitch - Connector | Pitch - Connector | Features | Connector Type | Contact Finish | Shielding | Number of Rows | Cable Termination | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Length [x] | Length [x] | Pitch - Cable | Pitch - Cable | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors A1CXB-4036M | Multiple, Ribbon | 0.1 in | 2.54 mm | Polarizing Key | Socket to Cable | Gold | Unshielded | 2 | IDC | 0.76 Ám | 30 Áin | 40 | 3 ft | 914.4 mm | 0.05 " | 1.27 mm | |
TE Connectivity AMP Connectors A1CXB-1636M | Multiple, Ribbon | 0.1 in | 2.54 mm | Polarizing Key | Socket to Cable | Gold | Unshielded | 2 | IDC | 0.76 Ám | 30 Áin | 3 ft | 914.4 mm | 0.05 " | 1.27 mm | 16 | |
TE Connectivity AMP Connectors A1CXB-2636G | 0.1 in | 2.54 mm | Polarizing Key | Socket to Cable | Gold | Unshielded | 2 | IDC | 0.76 Ám | 30 Áin | 26 | 3 ft | 914.4 mm | 0.05 " | 1.27 mm | ||
TE Connectivity AMP Connectors A1CXB-4436G | 0.1 in | 2.54 mm | Polarizing Key | Socket to Cable | Gold | Unshielded | 2 | IDC | 0.76 Ám | 30 Áin | 44 | 3 ft | 914.4 mm | 0.05 " | 1.27 mm | ||
TE Connectivity AMP Connectors A1CXB-3436M | Multiple, Ribbon | 0.1 in | 2.54 mm | Polarizing Key | Socket to Cable | Gold | Unshielded | 2 | IDC | 0.76 Ám | 30 Áin | 34 | 3 ft | 914.4 mm | 0.05 " | 1.27 mm | |
TE Connectivity AMP Connectors A1CXB-2036G | 0.1 in | 2.54 mm | Polarizing Key | Socket to Cable | Gold | Unshielded | 2 | IDC | 0.76 Ám | 30 Áin | 20 | 3 ft | 914.4 mm | 0.05 " | 1.27 mm | ||
TE Connectivity AMP Connectors A1CXB-3436G | 0.1 in | 2.54 mm | Polarizing Key | Socket to Cable | Gold | Unshielded | 2 | IDC | 0.76 Ám | 30 Áin | 34 | 3 ft | 914.4 mm | 0.05 " | 1.27 mm | ||
TE Connectivity AMP Connectors A1CXB-1436M | Multiple, Ribbon | 0.1 in | 2.54 mm | Polarizing Key | Socket to Cable | Gold | Unshielded | 2 | IDC | 0.76 Ám | 30 Áin | 14 | 3 ft | 914.4 mm | 0.05 " | 1.27 mm | |
TE Connectivity AMP Connectors A1CXB-2036M | Multiple, Ribbon | 0.1 in | 2.54 mm | Polarizing Key | Socket to Cable | Gold | Unshielded | 2 | IDC | 0.76 Ám | 30 Áin | 20 | 3 ft | 914.4 mm | 0.05 " | 1.27 mm | |
TE Connectivity AMP Connectors A1CXB-6436G | 0.1 in | 2.54 mm | Polarizing Key | Socket to Cable | Gold | Unshielded | 2 | IDC | 0.76 Ám | 30 Áin | 64 | 3 ft | 914.4 mm | 0.05 " | 1.27 mm |
Description
General part information
A1CXB Series

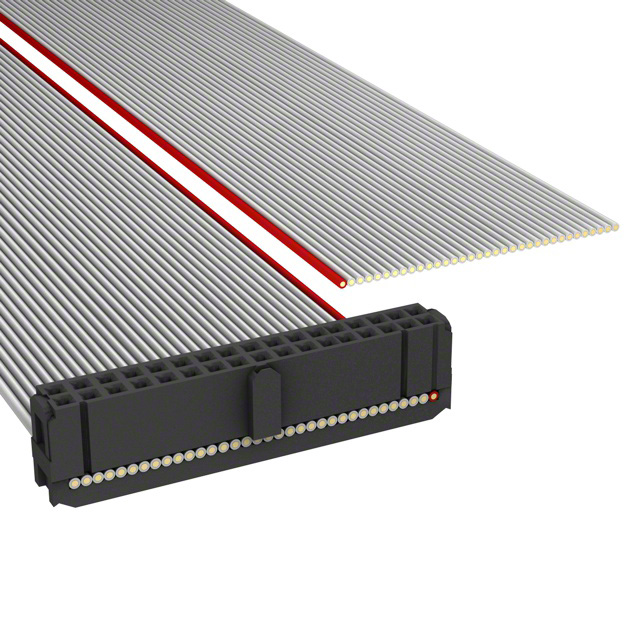

34 Position Cable Assembly Rectangular Socket to Cable 3.00' (914.40mm)
