927773-6
ActiveTE Connectivity AMP Connectors

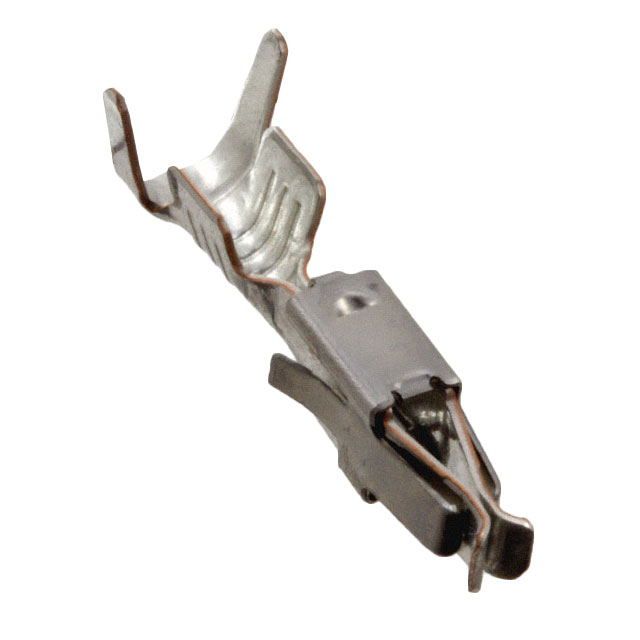

CONN SOCKET 13-17AWG CRIMP SILVR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
927773-6
ActiveTE Connectivity AMP Connectors
CONN SOCKET 13-17AWG CRIMP SILVR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 927773-6 | 927773 Series |
|---|---|---|
| Contact Finish | Silver | Tin, Silver |
| Contact Finish Thickness | 31.5 µin | 31.5 - 39.4 Áin |
| Contact Finish Thickness | 0.8 µm | 0.8 - 1 Ám |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Socket | Socket |
| Type | Power | Power |
| Wire Gauge [Max] | 17 AWG | 17 AWG |
| Wire Gauge [Min] | 13 AWG | 13 AWG |
927773 Series
CONN SOCKET 13-17AWG CRIMP TIN
| Part | Contact Finish Thickness | Contact Finish Thickness | Contact Termination | Pin or Socket | Contact Finish | Wire Gauge [Min] | Wire Gauge [Max] | Type |
|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 927773-3 | 39.4 Áin | 1 Ám | Crimp | Socket | Tin | 13 AWG | 17 AWG | Power |
TE Connectivity AMP Connectors 927773-1 | 39.4 Áin | 1 Ám | Crimp | Socket | Tin | 13 AWG | 17 AWG | Power |
TE Connectivity AMP Connectors 927773-6 | 31.5 µin | 0.8 µm | Crimp | Socket | Silver | 13 AWG | 17 AWG | Power |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
927773 Series
Socket Contact Silver 13-17 AWG Crimp Power
